Product Detail | Bloxlimited

XAL

RECESSED DOWNLIGHT

INDOOR LIGHTING

090-7L251D0B21 090-7L2020B

Rectangular recessed multi-downlight made of die-cast aluminium; installation without tools in mounting set due to patented ball catch system; rectangular installation housing; with trim jet black; suitable for ceiling thickness of 2-25 mm; equipped with two wide flood round light elements; symmetrical light distribution with precise radiation characteristic, beam angle 72°; high quality reflector with micro-faceted, aluminum-vaporised surface; black reflector; passive cooling of the LEDs through improved heat sink geometry; light colour 3000 K; binning initial MacAdam ≤ 3 SDCM; CRI ≥ 90; min. 90% of luminous flux after 50000 operating hours; energy-efficient high power LEDs with very good colour rendering; degree of protection IP20; PC2; incl. converter, non dimmable; through wiring connection box, 3-pole or 5-pole, available as an accessory; accessories are listed separately; light source not replaceable; control gear replaceable by an authorized professional; clank-free;

Specification

Power

7.9W

Color Temperature

3000K

Light Source Type

LED

Lumen Output

686LM

Finishing

BLACK

IP Rating

IP20

Color Rendering

CRI >90

Driver

ON/OFF DRIVER

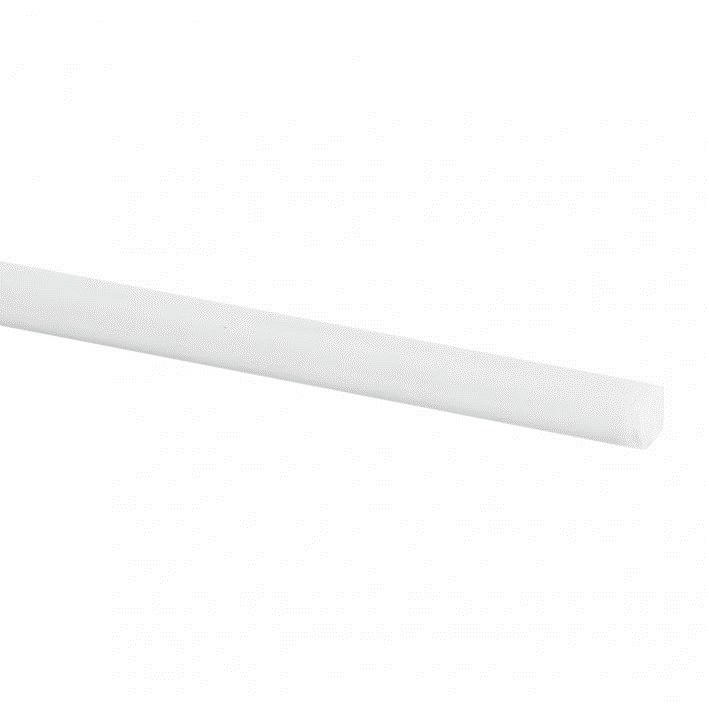

LINEALIGHT

WALLWASHER

INDOOR LIGHTING

Single emission lines for indoor application. The warm white LED light source with a diffused light distribution is composed of 360 topled LEDs. The device body is made of PC and features a opal white finish; the diffuser is made of PC. The ingress protection degree is IP40; the total weight is of 0.100 kg. The power supply driver is not provided and is to be ordered separately. The power supply cable is included and features a 0.2 m length. The device features protection class III and can be wall lights or ceilingmounted. Compliant with the EN 60598-1 standard and its specific provisions.

LIGHTFORMS

WALLWASHER

INDOOR LIGHTING

Lightplane 1 Wall Washer Recessed Trim is a small recessed slot light used for wall washing. The luminaire can be installed both vertically and horizontally to form continuous or individual rows. The fixture is available with several LED lamping options including multiple outputs and CCTs, tunable white and colour-changing RGB+White.

WE-EF

SURFACE MOUNTED LIGHT

OUTDOOR LIGHTING

Marine-grade, die-cast aluminium alloy. 5CE superior corrosion protection including PCS hardware. Safety glass lens. Silicone rubber gasket. Luminaire is factory-sealed and does not need to be opened during installation. Integral EC electronic converter. Advanced thermal management protects LEDs while optimising lumens output. CAD-optimised optics for superior illumination and glare control. OLC® One LED Concept. Two cable entries. Optional 2200 K version up to max. 1050mA available. To be specified at time of ordering. Luminaire can be mounted for up or down lighting.

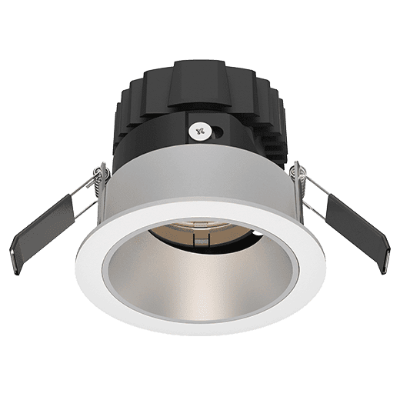

NEKO

ADJUSTABLE DOWNLIGHT

INDOOR LIGHTING

Round recessed mounted downlight made of die-cast aluminium with white powder-coating finish (RAL 9016) and matt reflector; LED 11W; measurement Ø85mm; ceiling cutout of Ø75mm with a narrow mounting trim; luminaire’s weight is approximately 220g; rotation 355° and pivot max. 30°; CCT 2700K with an LED Output of 1100lm; decent color rendering at an index of CRI80; after a lifetime of 50000h min. 80% of the luminous flux with energy efficient CITIZEN LED Chips; 5 years warranty.
