XAL

RECESSED DOWNLIGHT

INDOOR LIGHTING

090-7L251B0B21 090-7L2020W

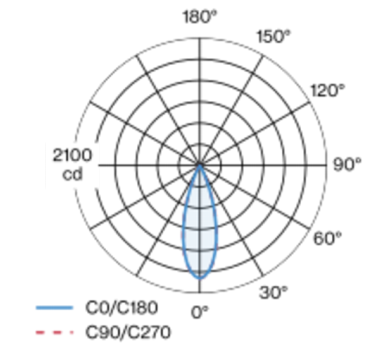

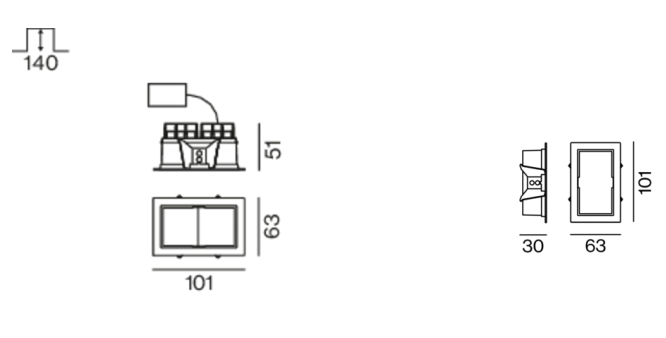

Rectangular recessed multi-downlight made of die-cast aluminium; installation without tools in mounting set due to patented ball catch system; rectangular installation housing; with trim traffic white; suitable for ceiling thickness of 2-25 mm; equipped with two medium round light elements; symmetrical light distribution with precise radiation characteristic, beam angle 33°; high quality reflector with micro-faceted, aluminum-vaporised surface; black reflector; UGR ≤ 10; VDU compatible workplace luminaire according to DIN EN 12464-1; luminance above 65° ≤ 3000 cd/m²; passive cooling of the LEDs through improved heat sink geometry; light colour 3000K; binning initial MacAdam ≤ 3 SDCM; CRI ≥ 90; min. 90% of luminous flux after 50000 operating hours; energyefficient high power LEDs with very good colour rendering; degree of protection IP20; PC2; incl. converter, non dimmable; through wiring connection box, 3-pole or 5-pole, available as an accessory; accessories are listed separately; light source not replaceable; control gear replaceable by an authorized professional; clank-free

Specification

Power

7.9W

Color Temperature

3000K

Light Source Type

LED

Lumen Output

602LM

Finishing

BLACK

IP Rating

IP20

Color Rendering

CRI >90

Driver

ON/OFF DRIVER

KOIZUMI

WALLWASHER

INDOOR LIGHTING

Double asymmetric wallwasher downlight made of die cast aluminium frame, aluminium or mirror finish cone. These light distributed so as to expand on both sides effectively illuminates both sides of fixtures as well as assuring illuminance of the base with leaked light, allowing a single light to play three roles. Fewer appliances are required, keeping the ceiling layout clear. Effective in fast-fashion stores, supermarkets or libraries with tall fixtures.

FLOS

TABLE LAMP

OUTDOOR LIGHTING

Portable version equipped with a carrying handle. Adjustable driver 5/100÷240V/50-60Hz integrated in the body of the luminaire with optical switch sensor on the head and with a 4-step dimming function: 100%-50%-3%-OFF. Rechargeable with a 120cm long Micro USB-C cable ensuring continuous emission for up to 6 hours. Charger with interchangeable EUR, UK and USA plugs.

LINEALIGHT

LED STRIP

OUTDOOR LIGHTING

Single emission led strip for outdoor application. The warm white LED light source with a diffused light distribution is composed of 1400 topled LEDs. The device body is made of technopolymer and features a white finish; the diffuser is made of pu. The ingress protection degree is IP67; the total weight is of 3.850 kg. The power supply driver is not provided and is to be ordered separately. The power supply cable is included and features a 1(M)x0.25 m + 1(F)x0.25 m length. The device features pr

LINEALIGHT

RECESSED DOWNLIGHT

INDOOR LIGHTING

Single emission downlights for indoor application. The warm white LED light source with a extra wide flood light distribution is composed of 3 powerled LEDs. The device body is made of aluminium and features a embossed white ral 9003 finish, processed by means of coating. The ingress protection degree is IP40; the total weight is of 0.09 kg. The power supply driver is not provided and is to be ordered separately. The power supply cable is included and features a 0.12 m length. The device features protection class III and can be ceiling-mounted, with a 46 mm diameter hole (in plasterboard) with an outer casing, code 89374 (for concrete or masonry). Compliant with the EN 60598-1 standard and its specific provisions.
