XAL

RECESSED DOWNLIGHT

INDOOR LIGHTING

090-7L251A0022 090-7L2020W

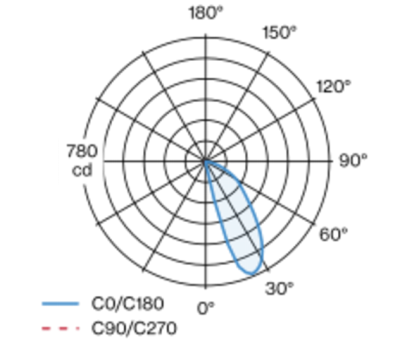

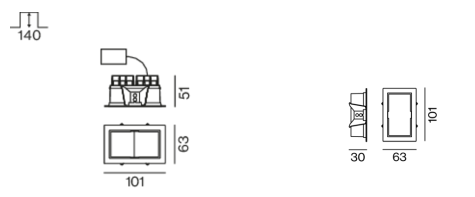

Rectangular recessed multi-downlight made of die-cast aluminium; installation without tools in mounting set due to patented ball catch system; rectangular installation housing; with trim traffic white; suitable for ceiling thickness of 2-25 mm; equipped with two wallwasher light elements; asymmetrical light distribution with precise radiation characteristic; high quality reflector with micro-faceted, aluminum-vaporised surface; chrome reflector; passive cooling of the LEDs through improved heat sink geometry; light colour 3000 K; binning initial MacAdam ≤ 3 SDCM; CRI ≥ 90; min. 90% of luminous flux after 50000 operating hours; energy-efficient high power LEDs with very good colour rendering; degree of protection IP20; PC2; incl. converter, non dimmable; through wiring connection box, 3-pole or 5-pole, available as an accessory; accessories are listed separately; light source not replaceable; control gear replaceable by an authorized professional; clank-free

Specification

Power

7.9W

Color Temperature

3000K

Light Source Type

LED

Lumen Output

612LM

Finishing

WHITE

IP Rating

IP20

Color Rendering

CRI >90

Driver

ON/OFF DRIVER

XAL

LINEAR DOWNLIGHT

INDOOR LIGHTING

Rectangular recessed multi-downlight made of die-cast aluminium; installation without tools in mounting set due to patented ball catch system; rectangular installation housing; with trim traffic white; suitable for ceiling thickness of 2-25 mm; equipped with three medium square light elements; symmetrical light distribution with precise radiation characteristic, beam angle 32°; high quality reflector with micro-faceted, aluminum-vaporised surface; black reflector; UGR ≤ 10; VDU compatible workplace luminaire according to DIN EN 12464-1; luminance above 65° ≤ 3000 cd/m²; passive cooling of the LEDs through improved heat sink geometry; light colour 3000K; binning initial MacAdam ≤ 3 SDCM; CRI ≥ 90; min. 90% of luminous flux after 50000 operating hours; energyefficient high power LEDs with very good colour rendering; degree of protection IP20; PC2; incl. converter, non dimmable; through wiring connection box, 3-pole or 5-pole, available as an accessory; accessories are listed separately; light source not replaceable; control gear replaceable by an authorized professional; clank-free

LUCE & LIGHT

WALL LIGHT

OUTDOOR LIGHTING

Kocca 1.2

wall mounted for outdoor applications, double beam; surface mounted (wall); Power consumption: 7W, 15W; Power supply: 230Vac; Lumen output at source: 1314 lm (3000K, 15W), 368 lm (3000K, 7W); Delivered lumen output: 204 lm (3000K, 140° asymmetrical, 7W), 646 lm (3000K, 140° asymmetrical, 15W), 956 lm (3000K, diffuse version); 2 power LEDs, 1/4 ANSI BIN (7W version), 2 High Intensity power LEDs, 3-step MacAdam (15W version), 50 000h L90 B10 (Ta 25°C); LED colour: 2700K, 3000K, 4000K; Op

FLOS

ADJUSTABLE DOWNLIGHT

INDOOR LIGHTING

Recessed luminaire with LED light source. Power supply not included. Installation frame not required.

FLOS

RECESSED DOWNLIGHT

OUTDOOR LIGHTING

Eclectic Ø70. Non-adjustable Downlight. “Cone” style façade. Necessary installation pre-frames, not included (to be ordered separately). Recessed position of the LED: 47º cut-off angle. IP54 water tightness. Alternative options for lenses, orientation modules and style façades are available as spare parts. The ingress protection degree is IP54.
