XAL

RECESSED DOWNLIGHT
INDOOR LIGHTING
090-7L251E0B21 090-7L20100

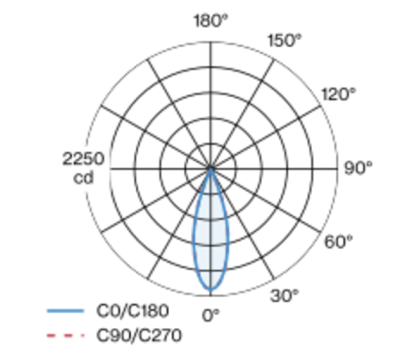

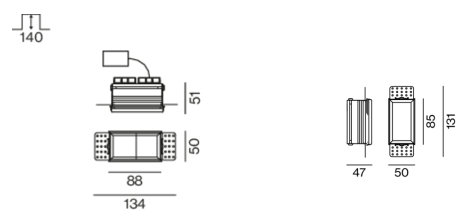

Rectangular recessed multi-downlight made of die-cast aluminium; installation without tools in mounting set due to patented ball catch system; rectangular installation housing; for trimless installation in plasterboard ceilings; suitable for ceiling thickness of 12.5/15/20/25 mm; equipped with two medium square light elements; symmetrical light distribution with precise radiation characteristic, beam angle 32°; high quality reflector with micro-faceted, aluminum-vaporised surface; black reflector; UGR ≤ 10; VDU compatible workplace luminaire according to DIN EN 12464-1; luminance above 65° ≤ 3000 cd/m²; passive cooling of the LEDs through improved heat sink geometry; light colour 3000 K; binning initial MacAdam ≤ 3 SDCM; CRI ≥ 90; min. 90% of luminous flux after 50000 operating hours; energy-efficient high power LEDs with very good colour rendering; degree of protection IP20; PC2; incl. converter, non dimmable; through wiring connection box, 3-pole or 5-pole, available as an accessory; accessories are listed separately; light source not replaceable; control gear replaceable by an authorized professional; clank-free

Specification

Power
7.9W
Color Temperature
3000K
Light Source Type
LED
Lumen Output
592LM
Finishing
BLACK
IP Rating
IP20
Color Rendering
CRI >90
Driver
ON/OFF DRIVER

See more

IGUZZINI
RECESSED DOWNLIGHT
INDOOR LIGHTING
Round fixed luminaire designed to use LED lamps with C.o.B. technology. Version with rim for surface-mounting. Prismatic thermoplastic reflector complete with flux enhancer. Optic available with two finishes, clear white or clear black. Dissipater made of painted grey die-cast aluminium. Product complete with LED lamp in warm white colour tone (3000K) and microfilm that is able to guarantee a light beam of UGR<19 L<3000 cd/m2, which is ideal for environments with video terminals.
ENDO
TREE STRAP SPOTLIGHT
OUTDOOR LIGHTING
Carrying the same DNA as the Indoor series, the brand new MINI30 Outdoor Spotlight offers the same beam angle lineup in an IP65-rated body. Carrying the same DNA as the Indoor series, the brand new MINI30 Outdoor Spotlight offers the same beam angle lineup in an IP65-rated body.
PLUS LIGHT TECH
SPIKE LIGHT
OUTDOOR LIGHTING

The re-engineered reflector mechanics reduces field angles and improves the uniformity of the beams. Tumblerr family reflectors are compact solutions for outdoor Wallmount, Garden Spike light and Bollards. Beam angle options here are 15/28/38/55. The luminaire housing is constructed with Pure Aluminum CNC Machined Grade with copper content less than 1% to have uniform outdoor grade different anodized finish or special powder coating.

XAL
LINEAR DOWNLIGHT
INDOOR LIGHTING
Rectangular recessed multi-downlight made of die-cast aluminium; installation without tools in mounting set due to patented ball catch system; rectangular installation housing; for trimless installation in plasterboard ceilings; suitable for ceiling thickness of 12.5/15/20/25 mm; equipped with three flood round light elements; symmetrical light distribution with precise radiation characteristic, beam angle 49°; high quality reflector with micro-faceted, aluminum-vaporised surface; chrome reflector; UGR ≤ 16; VDU compatible workplace luminaire according to DIN EN 12464-1; luminance above 65° ≤ 3000 cd/m²; passive cooling of the LEDs through improved heat sink geometry; light colour 3000 K; binning initial MacAdam ≤ 3 SDCM; CRI ≥ 90; min. 90% of luminous flux after 50000 operating hours; energy-efficient high power LEDs with very good colour rendering; degree of protection IP20; PC2; incl. converter, non dimmable; through wiring connection box, 3-pole or 5-pole, available as an accessory; accessories are listed separately; light source not replaceable; control gear replaceable by an authorized professional; clank-free
