XAL

RECESSED DOWNLIGHT

INDOOR LIGHTING

090-7L251W0B22 090-7L20100

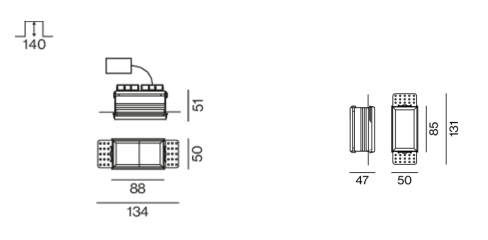

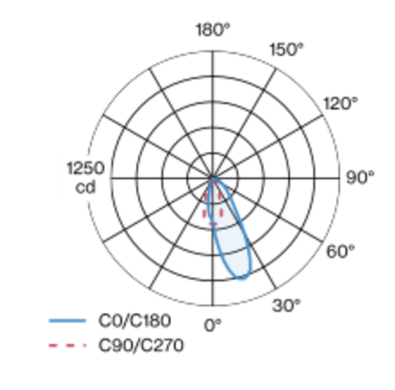

Rectangular recessed multi-downlight made of die-cast aluminium; installation without tools in mounting set due to patented ball catch system; rectangular installation housing; for trimless installation in plasterboard ceilings; suitable for ceiling thickness of 12.5/15/20/25 mm; equipped with two wallwasher floor light elements; asymmetrical light distribution with precise radiation characteristic; high quality reflector with micro-faceted, aluminum-vaporised surface; black reflector; passive cooling of the LEDs through improved heat sink geometry; light colour 3000 K; binning initial MacAdam ≤ 3 SDCM; CRI ≥ 90; min. 90% of luminous flux after 50000 operating hours; energy-efficient high power LEDs with very good colour rendering; degree of protection IP20; PC2; incl. converter, non dimmable; through wiring connection box, 3-pole or 5-pole, available as an accessory; accessories are listed separately; light source not replaceable; control gear replaceable by an authorized professional; clank-free

Specification

Power

7.9W

Color Temperature

3000K

Light Source Type

LED

Lumen Output

638LM

Finishing

BLACK

IP Rating

IP20

Color Rendering

CRI >90

Driver

ON/OFF DRIVER

LINEALIGHT

WALLWASHER

OUTDOOR LIGHTING

Single emission lines for outdoor application. The warm white LED light source with a elliptical light distribution is composed of 11 powerled LEDs. The device body is made of aluminium 6060 and features a anodised aluminum finish, processed by means of 20 µm anodizing; the diffuser is made of extra clear glass - tempered with a silk-screening treatment. The ingress protection degree is IP67; the total weight is of 1.1 kg. The power supply cable is included and features a 0.2 m length. The device features protection class I and can be wall lights-mounted. Compliant with the EN 60598-1 standard and its specific provisions.

LINEALIGHT

UNDERWATER LIGHT

OUTDOOR LIGHTING

Single emission submerged for outdoor application. The natural white LED light source with a medium wide flood light distribution is composed of 3 powerled LEDs. The device body is made of stainless steel and features a steel finish; the diffuser is made of extra clear glass - tempered with a silk-screening treatment. The ingress protection degree is IP68,IK10.

UNIOS

SURFACE MOUNTED DOWNLIGHT

INDOOR LIGHTING

From residential to commercial applications, the Apex Surface Mounted Downlight is an unrivalled match with its practicality and efficiency, proving a perfect fit with a plethora of power, size and accessory options. A new chip in the Apex Series improves the performance of an already superior downlight.

TRAXON

CONTROL SYSTEM

LTECH SIGNAL AMPLIFIER used in the DMX/RDM lighting control system. Automatically recognize DMX/RDM signals. channel input, 4/8 channel outputs; multiple channel outputs to increase DMX device number. Relay function for amplifying weak DMX/RDM signals and extending the signal transmission distance. BYPASS function for expanding DMX device number. Independent photoelectric isolation between the input and the outputs to improve overall security and reliability of the lighting control system.
