Products

XAL

LINEAR DOWNLIGHT
INDOOR LIGHTING
090-7L351A0021 090-7L3020B

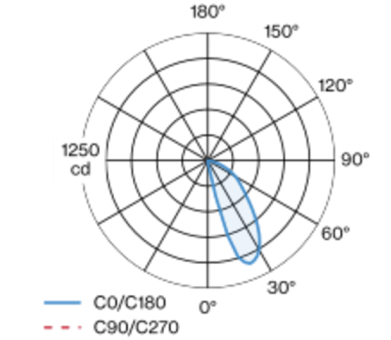

Rectangular recessed multi-downlight made of die-cast aluminium; installation without tools in mounting set due to patented ball catch system; rectangular installation housing; with trim jet black; suitable for ceiling thickness of 2-25 mm; equipped with tree wallwasher light elements; asymmetrical light distribution with precise radiation characteristic; high quality reflector with micro-faceted, aluminum-vaporised surface; chrome reflector; passive cooling of the LEDs through improved heat sink geometry; light colour 3000 K; binning initial MacAdam ≤ 3 SDCM; CRI ≥ 90; min. 90% of luminous flux after 50000 operating hours; energy-efficient high power LEDs with very good colour rendering; degree of protection IP20; PC2; incl. converter, non dimmable; through wiring connection box, 3-pole or 5-pole, available as an accessory; accessories are listed separately; light source not replaceable; control gear replaceable by an authorized professional; clank-free

Specification

Power
11.2W
Color Temperature
3000K
Light Source Type
LED
Lumen Output
873LM
Finishing
BLACK
IP Rating
IP20
Color Rendering
CRI >90
Driver
ON/OFF DRIVER

See more

APEX
LED STRIP
OUTDOOR LIGHTING

Flexible mini led strip 120 degree beam, 140 leds/m. 100mm cut length 24V voltage. CCT available from 2300K - 6000K. Suitable for Indoor and Outdoor application. DIMENSION : L1000mm x W8mm without silicon sleeve (with silicon sleeve is 10mm width).

LINEALIGHT
LED STRIP
OUTDOOR LIGHTING

Single emission led strip for outdoor application. The warm white LED light source with a diffused light distribution is composed of 700 topled LEDs. The device body is made of technopolymer and features a white finish; the diffuser is made of pu. The ingress protection degree is IP67; the total weight is of 1.365 kg. The power supply driver is not provided and is to be ordered separately. The power supply cable is included and features a 1(M)x0.25 m + 1(F)x0.25 m length. The device features pro

MEYER
PROJECTOR LIGHT
OUTDOOR LIGHTING
Housing made of die‑cast aluminum AlSi12, polyester powder coated by high‑quality and UV‑stabilized coating process, Colour: black ral 7021, all exterior parts are stainless steel, tempered safety glass, anti‑reflective coating from 1 side, dark screenprint, silicon gasket, closure with 4 stainless steel screws, powder coated aluminum mounting bracket with tilt scale: 2 drilled holes Ø 8.5 mm, spacing 70 mm, 1 centre hole Ø 17 mm, tilt range: 120°, cable gland: M20, connecting terminal: 3 pole, highly efficient anodized rotationally symmetrical reflector with matt finish, integral driver (AC/DC), CRI > 80, max 2 SDCM, service life L90/B10 > 50.000 h, Beam angle (fwhm): 18°, luminous flux: 4390 lm, wattage: 48 W, delivered lumens 91 lm/W, protection type IP67, protection class I, impact resistance IK08, windage area 0,04 m², dimensions (L×H×W): 140 × 163 × 190 mm, weight 2.76 kg. The modular luminaire design makes the replacement of components possible. The product meets the demands of the applicable EU guidelines and product safety regulations and bears the CE and ENEC marks. Customized solutions and modifications are possible: Special ral, db or ncs colours as polyester powder coat, luminaires in 2700 K and other colour temperatures and versions for high ambient temperature.
LINEALIGHT
PROJECTOR LIGHT
OUTDOOR LIGHTING

A single-emission projector with a super warm white 2700K LED (CRI 80) delivering 1265 lm at 140.6 lm/W. Made of AISI 316 steel with an electropolished finish and extra-clear tempered glass diffuser. IP68-rated, weighing 1.2 kg, with a 13W power consumption. Includes a 1m power cable, protection class II, and can be wall, ceiling, or floor-mounted. Compliant with EN 60598-1.
