XAL

LINEAR DOWNLIGHT
INDOOR LIGHTING
090-7L351F0021 090-7L3020B

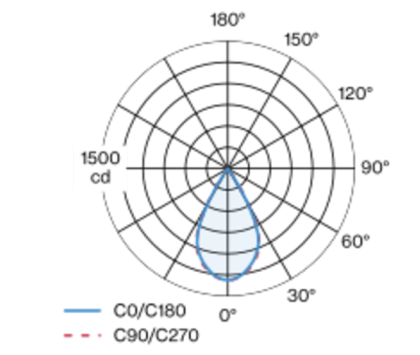

Rectangular recessed multi-downlight made of die-cast aluminium; installation without tools in mounting set due to patented ball catch system; rectangular installation housing; with trim jet black; suitable for ceiling thickness of 2-25 mm; equipped with three flood square light elements; symmetrical light distribution with precise radiation characteristic, beam angle 56°; high quality reflector with micro-faceted, aluminum-vaporised surface; chrome reflector; UGR ≤ 19; VDU compatible workplace luminaire according to DIN EN 12464-1; luminance above 65° ≤ 3000 cd/m²; passive cooling of the LEDs through improved heat sink geometry; light colour 3000 K; binning initial MacAdam ≤ 3 SDCM; CRI ≥ 90; min. 90% of luminous flux after 50000 operating hours; energy-efficient high power LEDs with very good colour rendering; degree of protection IP20; PC2; incl. converter, non dimmable; through wiring connection box, 3-pole or 5-pole, available as an accessory; accessories are listed separately; light source not replaceable; control gear replaceable by an authorized professional; clank-free

Specification

Power
11.2W
Color Temperature
3000K
Light Source Type
LED
Lumen Output
1000LM
Finishing
BLACK
IP Rating
IP20
Color Rendering
CRI >90
Driver
ON/OFF DRIVER

See more

LIGHTFORMS
SURFACE TRACKLIGHT
INDOOR LIGHTING
Lightplane 1 H features a 25mm linear channel and delivers both direct and indirect lighting. This small channel allows for minimal linear lighting in suspended, wall and surface (direct only) applications. Driver is REMOTE.
FORMALIGHTING
LINEAR LIGHT
INDOOR LIGHTING
The Microline system is a custom design for a major retaillighting project. Surface-mounted modular linear LED system in extruded aluminum. Available in different lengths and configurations. LEDs in a wide variety of color temperatures, High Color Rendering with CRI up to 97 and R9 >90. Multiple diffuser options at your disposal can greatly enhance the overall aesthetic and functionality of a space. Dimming options are determined by the Power Supply, Remote Power Supply not included, to be ordered separately. Available in different lengths from 55 mm to 2035 mmand section length : 45 mm.
LUCE & LIGHT
WALL LIGHT
OUTDOOR LIGHTING

Wall mounted for outdoor applications, single beam; surface mounted (wall); Power consumption: 7W; Power supply: 24Vdc; Lumen output at source: 795 lm; Delivered lumen output: 501 lm (52°, 3000K); 1 COB LED, 2-step MacAdam, 60 000h L80 B10 (Ta 25°C); LED colour: 2700K; Optics: 52°: optical system consisting of a high-efficiency, deep-set TIR lens combined with a high-quality technical filter; CRI Colour Rendering Index: >90; Body material: body made of low-copper-content die-cast aluminium alloy

WEVER & DUCRE
SURFACE MOUNTED LIGHT
INDOOR LIGHTING

Ceiling surface spotlight made from die-cast aluminium; surface Black Matt; powder coated, matt texture. Lamp socket GU10; lamp type PAR16; max. 12W; 100 - 240 V; 90° tiltable; degree of protection IP20.
