XAL

LINEAR DOWNLIGHT

INDOOR LIGHTING

090-7L351F0B21 090-7L3020W

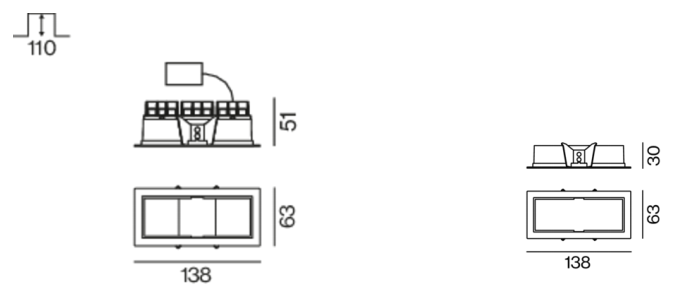

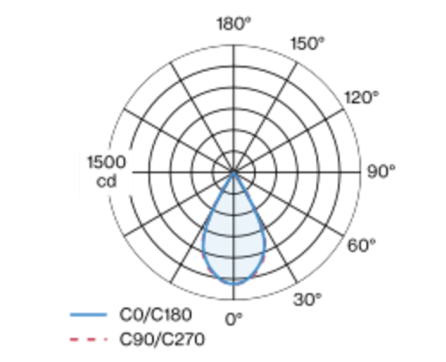

Rectangular recessed multi-downlight made of die-cast aluminium; installation without tools in mounting set due to patented ball catch system; rectangular installation housing; with trim traffic white; suitable for ceiling thickness of 2-25 mm; equipped with three flood square light elements; symmetrical light distribution with precise radiation characteristic, beam angle 56°; high quality reflector with micro-faceted, aluminum-vaporised surface; black reflector; UGR ≤ 19; VDU compatible workplace luminaire according to DIN EN 12464-1; luminance above 65° ≤ 3000 cd/m²; passive cooling of the LEDs through improved heat sink geometry; light colour 3000K; binning initial MacAdam ≤ 3 SDCM; CRI ≥ 90; min. 90% of luminous flux after 50000 operating hours; energyefficient high power LEDs with very good colour rendering; degree of protection IP20; PC2; incl. converter, non dimmable; through wiring connection box, 3-pole or 5-pole, available as an accessory; accessories are listed separately; light source not replaceable; control gear replaceable by an authorized professional; clank-free

Specification

Power

11.2W

Color Temperature

3000K

Light Source Type

LED

Lumen Output

1000LM

Finishing

WHITE

IP Rating

IP20

Color Rendering

CRI >90

Driver

ON/OFF DRIVER

IGUZZINI

SPOTLIGHT

OUTDOOR LIGHTING

Spotlight designed to use LED lamps and a Very Wide Flood optic. The optical assembly and base is made of EN1706AC 46100LF aluminium alloy and subjected to a multi-step, pre-treatment process, in which the main phases are degreasing, fluorozirconation (a protective surface film) and sealing (with a nano-structured silane layer). The following painting stage consists of a primer and a liquid acrylic paint, cured at 150°C, with a high level of weather and UV ray resistance.

LED LINEAR

SUSPENDED LINEAR LIGHT

INDOOR LIGHTING

Unobtrusive and minimal pendant luminaire, yet packing a powerful punch and suitable for any task lighting. Intended primarily as a stand-alone luminaire, with multiple options. Extremely small for a pendant luminaire, especially when considering the built-in optical technology and an output of up to 1,840lm/m. The elegant brown loops made from either leather or Appleskin complement the material mix of the luminaire.

FORMALIGHTING

SURFACE MOUNTED LIGHT

INDOOR LIGHTING

The new Canali edge is a revolutionary edge-less lighting system featuring easy and clean installation, eliminating wired connections and gearboxes in the cove. Canali Edge profile features easy-to-clip on adjustable spotlights, together with a dedicated channel for linear cove lights fixed by magnets, all in extruded aluminum. The Integrated 3 phase track system with DALI bus enables full DALI control on both linear and track spots. Small and powerful in-track integrated drivers make it very easy to move and reposition the spotlights and the linear lights.

ACCLAIM

LINEAR LIGHT

OUTDOOR LIGHTING

Linear XTR Direct View is a direct view LED linear fixture designed for maximum run length. Using custom internal circuitry and advanced power systems, it allows for interconnection of up to 700’ of product, and up to 1400’ on a single driver when controlled in group mode. Available in multiple color temperatures of white or color-changing, it is perfect for applications where longdistance runs are desired.
