SPARK

RECESSED DOWNLIGHT

INDOOR LIGHTING

SPK0121_15W_36D

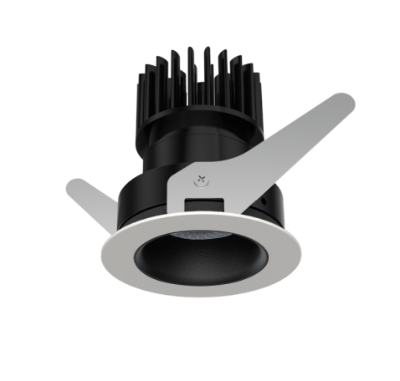

Recessed fixed downlight made of aluminium housing with white powder coated finish. Inner reflector available in Silver, Chrome black, Mirror chrome and white color finish.

Specification

Power

15W

Color Temperature

3000K

Light Source Type

LED

Lumen Output

991LM

Finishing

WHITE

IP Rating

IP20

Color Rendering

CRI 90

Driver

ON/OFF DRIVER

RCL

ADJUSTABLE DOWNLIGHT

INDOOR LIGHTING

DR7 TUNABLE WHITE LED (34W for light source) standard trim recessed luminaire with 17° optic. Manufactured from LM24 aluminium and glass-filled polycarbonate, with a mild-steel mounting ring. Finished in white (RAL 9010). Voltage is 220-240V 50/60HZ. Luminaire has high-performance colour rendering of 90+ CRI. Luminaire can be rotated, with +/- 175° movement through the pan axis and •+/-35° through the tilt axis, at a resolution of less than 1° in either axis.

LINEALIGHT

CEILING LIGHT

INDOOR LIGHTING

Single emission downlights for indoor application. The warm white LED light source with a medium wide flood light distribution is composed of 6 powerled LEDs with CCT of 3000 K and a CRI 90; the source luminous flux is 1074 lm, with a 89.5 lm/W nominal luminous efficacy. The device body is made of plaster and features a white finish; the diffuser is made of ABS. The ingress protection degree is IP20; the total weight is of 0.690 kg. The power supply driver is not provided and is to be ordered separately. The total absorbed power is 12 W. The power supply cable is included and features a 0.170 m length. The device features protection class III and can be ceiling-mounted, with a 270 x 90 mm hole (in plasterboard). Compliant with the EN 60598-1 standard and its specific provisions.

LIGHTFORMS

SUSPENDED LINEAR LIGHT

OUTDOOR LIGHTING

Suspended / Surface mount linear light direct or indirect distribution. Extruded architectural grade aluminium with minimum 2mm thickness. Diffuse is a white satin, flush diffuser lens that produces smooth, even light across the lens surface. IP65
