LINEALIGHT

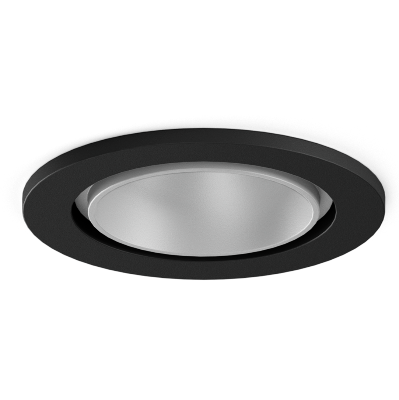

Round recessed spotlight in die-cast aluminium; surface matt silver; installation without tools in mounting set due to patented ball catch system; round installation housing; with trim jet black; suitable for ceiling thickness of 2-25 mm; passive cooling of the LEDs through improved heat sink geometry; with COB (Chip on Board) technology for maximum efficiency; no appearance of multiple shadows; light colour 2700 K; ≤ 3 SDCM (initial MacAdam); CRI ≥ 90; min. 85% of luminous flux after 50000 oper

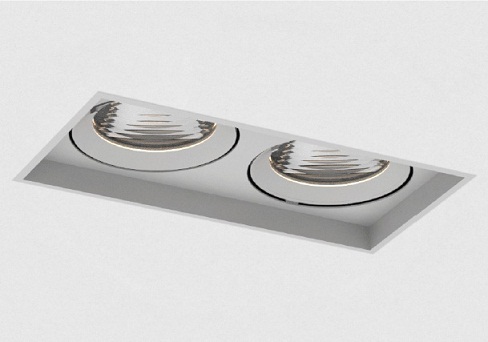

The recessed spot MECHANIQ SQUARE EFFICIENCY DOUBLE from the familiy MECHANIQ consists of aluminum-die-cast. With 3 powder coated options 15625 colour combinations can be achieved. Stated photometric values correspond to operation by 500 mA; a suitable ballast needs to be sourced separately and is not scope of delivery. Dimming (# 220-0256) depends on the used ballast and may vary. The spot with direct illumination corresponds to protection class SK3 at IP20. Multiple applications possible due to comprehensive adjustment options. Rotability is 355° and additionally MECHANIQ SQUARE EFFICIENCY DOUBLE is tiltable by 45°. A PROLICHT lense pack is optionally available.

TA8 + LED Module_M3-9303511A-TA8-WWW

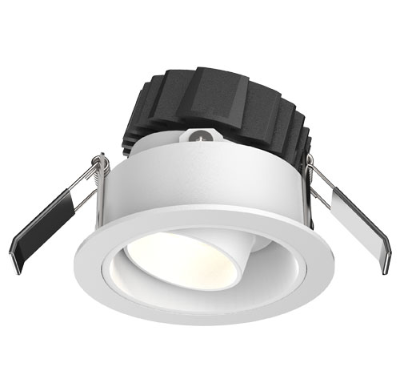

Round spotlight for recessed installation made of die-cast aluminium with white powder-coating finish (RAL 9016) and white reflector; 0-10V Dim Driver; LED 11W; measurement Ø85mm; ceiling cutout of Ø75mm with a narrow mounting trim; luminaire's weight is approximately 200g; rotation 355° and pivot max. 18°; CCT 3000K with an LED Output of 1100lm; high color rendering at an index of CRI90; after a lifetime of 50000h min. 80% of the luminous flux with energy ef
