Product Detail | Bloxlimited

XAL

RECESSED SPOTLIGHT

INDOOR LIGHTING

BO 45_049-6130518M 002-90724

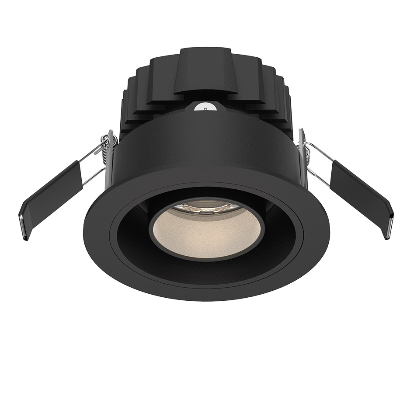

Cylindrical spotlight in aluminium; surface black powder coated; 350° rotatable and 90° tiltable; recessed version with trim; suitable for ceiling thickness of 2-25 mm; passive cooling of the LEDs through improved heat sink geometry; with COB (Chip on Board) technology for maximum efficiency; no appearance of multiple shadows

Specification

Power

15.8W

Color Temperature

3000K

Light Source Type

LED

Lumen Output

1410LM

Finishing

BLACK TRIM / BLACK REFLECTOR

IP Rating

IP20

Color Rendering

CRI90

Driver

ON/OFF DRIVER

LINEALIGHT

INGROUND LINEAR LIGHT

OUTDOOR LIGHTING

Single emission recessed downlights, recessed downlights, uplights, lines or lines for outdoor application. The natural white LED light source with a spot light distribution is composed of 5 powerled LEDs with CCT of 4000 K and a CRI 80; the source luminous flux is 2177 lm, with a 134.4 lm/W nominal luminous efficacy.

LINEALIGHT

RECESSED DOWNLIGHT

INDOOR LIGHTING

Single emission downlights for indoor application. The warm white LED light source with a flood light distribution is composed of 4 powerled LEDs. The device body is made of aluminium and features a embossed white ral 9003 finish, processed by means of coating. The ingress protection degree is IP40; the total weight is of 0.24 kg. The power supply driver is not provided and is to be ordered separately. The device features protection class III and can be ceiling-mounted, with a 76 mm diameter hole (in plasterboard) with an outer casing, code 89374 (for concrete or masonry). Compliant with the EN 60598-1 standard and its specific provisions.
