SPARK

RECESSED DOWNLIGHT

INDOOR LIGHTING

SPK1111-6W-15D

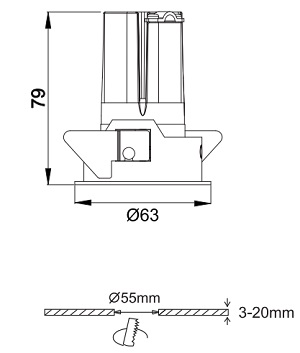

Recessed pin-hole downlight made of aluminium housing with white powder coated finish. Black finish available upon request. Luminaire come with 2 different sizes, 6-8W in Ø63mm and 8-15W in Ø90mm.

Specification

Power

Color Temperature

3000K

Light Source Type

LED

Lumen Output

289LM

Finishing

WHITE

IP Rating

IP20

Color Rendering

CRI 90

Driver

ON/OFF DRIVER

CDN LIGHTING

FRAME PROJECTOR

INDOOR LIGHTING

Ajaw series of track spotlights includes single and dual color temperature versions. With a wide range of power from 8W to 60W and a total of 14 models. The lighting coverage height ranges from 2 to 30m. Comprehensive solutions to meet professional needs, featuring 8 professional optical components plus honeycomb grids, color filters and anti-glare louvres. These optical accessories support diverse stacking combinations, enbaling flexible presentation of various lighting effects.

LINEALIGHT

INGROUND UPLIGHT

OUTDOOR LIGHTING

Single emission uplights for outdoor application. The warm white LED light source with a spot light distribution is composed of 1 arrayled LEDs with CCT of 3000 K and a CRI 80; the source luminous flux is 1724 lm, with a 132.6 lm/W nominal luminous efficacy. The device body is made of die-cast aluminium en ab - 46100 and features a black finish, processed by means of open pore anodizing + powder coating; the diffuser is made of extra clear glass - tempered with a silk-screening treatment. The ingress protection degree is IP68,IK10.

LINEALIGHT

RECESSED DOWNLIGHT

INDOOR LIGHTING

Single emission downlights for indoor application. The warm white LED light source with a spot light distribution is composed of 1 powerled LEDs. The device body is made of plaster and features a white finish; the diffuser is made of pet. The ingress protection degree is IP20; the total weight is of 0.25 kg. The power supply driver is not provided and is to be ordered separately. The power supply cable is included and features a 0.170 m length. The device features protection class III and can be ceiling-mounted, with a 85 x 85 mm hole (in plasterboard). Compliant with the EN 60598-1 standard and its specific provisions.
