SPARK

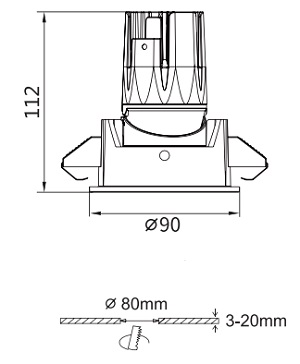

Recessed linear downlight, luminaire body made of aluminium housing with white powder coated trim finish. Reflector available Silver, Black Chrome and White finish. Black finish and honeycomb accessory available upon request.. Different type of bean angles.

LED pendant luminaire with direct light, made of high-quality extruded aluminium profile; black finish (RAL 9005) and chrome black reflector; GR6d-15 socket - reverse polarity protection and tool-free replacement without opening the; incl. illuminant DSD26-L120-830-BC as per ZHAGA Book 14; ON-OFF driver; 300-800mA; Dimension 1182mm x 45mm x 80mm; light color 3000K; good color rendering of CRI80; at least 80% of the luminous flux after a service life of 50000 hours L80B10; 5-year manufacturer's guarantee; Radiation characteristics with a beam angle of 80°; UGR<19 (up to 550mA); Luminance <1000cd/m² for gamma >= 65°according to EN 12464-1; Protection type of the housing IP20; Luminaire impact resistance IK05; can be installed as a single luminaire or as a continuous light band; 5 x 2.5 mm² through wiring; System luminous flux: 1895lm at 16W (118.4lm/W) @300mA (UGR<19), 2208lm at 18W (122.7lm/W) @350mA (UGR<19), 2455lm at 20W (122.8lm/W) @400mA (UGR<19), 2755lm at 22W (125.2lm/W) @450mA (UGR<19), 3097lm at 25W (123.9lm/W) @500mA (UGR<19), 3299lm at 27W (122.2lm/ W) @550mA (UGR<19), 3628lm at 30W (120.9lm/W) @600mA (UGR<22), 3884lm at 32W (121.4lm/W) @650mA (UGR<22), 4253lm at 36W ( 118.1lm/W) @700mA (UGR<22), 4449lm at 38W (117.1lm/W) @750mA (UGR<22), 4646lm at 40W (116.2lm/W) @800mA (UGR<22)

Track Adjustable Spotlight luminaire body made of aluminium housing with white powder coated finish. Black finish and honeycomb accessory available upon request. It come with different types of bean angles.

100-240V power supply included. Ready for installation on solid surface. Each luminaire is equipped with 200 mm cable for connection inside the luminaire body. Reccomended connection wit a 2 way terminal block 4 poles IP68 H2O Stop, to be ordered separately.
