XAL

LINEAR DOWNLIGHT

INDOOR LIGHTING

090-7L351G0021 090-7L3020W

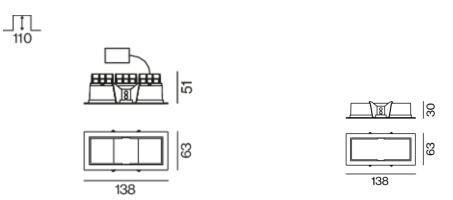

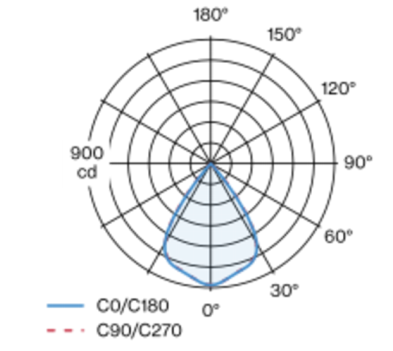

Rectangular recessed multi-downlight made of die-cast aluminium; installation without tools in mounting set due to patented ball catch system; rectangular installation housing; with trim traffic white; suitable for ceiling thickness of 2-25 mm; equipped with three wide flood square light elements; symmetrical light distribution with precise radiation characteristic, beam angle 71°; high quality reflector with micro-faceted, aluminum-vaporised surface; chrome reflector; passive cooling of the LEDs through improved heat sink geometry; light colour 3000K; binning initial MacAdam ≤ 3 SDCM; CRI ≥ 90; min. 90% of luminous flux after 50000 operating hours; energyefficient high power LEDs with very good colour rendering; degree of protection IP20; PC2; incl. converter, non dimmable; through wiring connection box, 3-pole or 5-pole, available as an accessory; accessories are listed separately; light source not replaceable; control gear replaceable by an authorized professional; clank-free

Specification

Power

11.2W

Color Temperature

3000K

Light Source Type

LED

Lumen Output

1030LM

Finishing

WHITE

IP Rating

IP20

Color Rendering

CRI >90

Driver

ON/OFF DRIVER

LINEALIGHT

RECESSED DOWNLIGHT

INDOOR LIGHTING

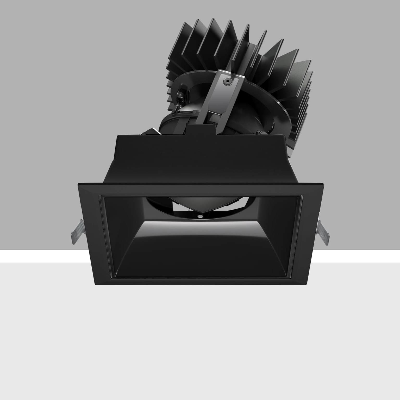

Single emission downlights for indoor application. The warm white LED light source with a flood light distribution is composed of 1 arrayled LEDs. The device body is made of die-cast aluminium en ab - 46100 and features a embossed black ral 9005 finish, processed by means of powder coating; the diffuser is made of uv resistant polycarbonate. The ingress protection degree is IP44; the total weight is of 0.511 kg. The power supply driver is not provided and is to be ordered separately. The power supply cable is included and features a 0.300 m length. The device features protection class III and can be ceiling-mounted, with a 91 x 91 mm hole (in plasterboard). Compliant with the EN 60598-1 standard and its specific provisions.

LINEALIGHT

WALLWASHER

INDOOR LIGHTING

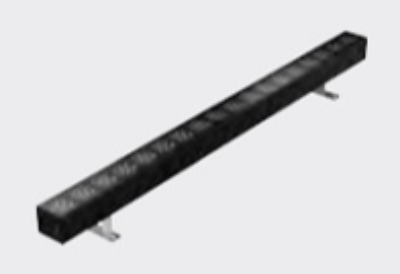

Single emission lines for indoor application. The warm white LED light source with a diffused light distribution is composed of 360 topled LEDs. The device body is made of PC and features a opal white finish; the diffuser is made of PC. The ingress protection degree is IP40; the total weight is of 0.103 kg. The power supply driver is not provided and is to be ordered separately. The power supply cable is included and features a 0.2 m length. The device features protection class III and can be wall lights or ceilingmounted, with a 2010 x 10 mm hole (in plasterboard). Compliant with the EN 60598-1 standard and its specific provisions.

IGUZZINI

SPOTLIGHT

OUTDOOR LIGHTING

Floodlight designed to use Warm White LED lamps with a Super Spot optic. Can be installed at ground level, on walls (using screw anchors) and on pole mounting systems. The luminaire consists of an optical assembly/component-holding box and hidden fixing bracket. The optical assembly and front frame are made of die-cast aluminium alloy painted with a smooth finish (grey RAL 9007) or a textured finish (white RAL 9016).

PLATEK

INGROUND UPLIGHT

OUTDOOR LIGHTING

Outdoor inground uplight body and front locking trim in AISI 316L stainless steel. IP68 Degree of protection with Full Dry system which avoids condensation inside the product. The Installation of the recessed housing in cast concrete with a 20-30 cm gravel soak away. Only an IP68 connection to the power supply can guarantee the same protection to the fixture. IK10
