XAL

LINEAR DOWNLIGHT
INDOOR LIGHTING
090-7L351N0021 090-7L3020W

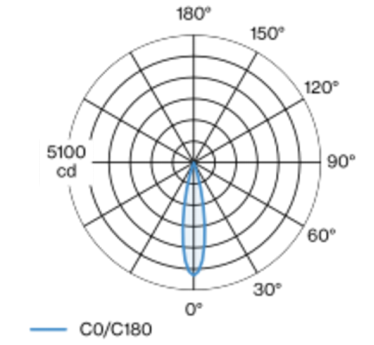

Rectangular recessed multi-downlight made of die-cast aluminium; installation without tools in mounting set due to patented ball catch system; rectangular installation housing; with trim traffic white; suitable for ceiling thickness of 2-25 mm; equipped with three narrow medium round light elements; symmetrical light distribution with precise radiation characteristic, beam angle 22°; high quality reflector with micro-faceted, aluminumvaporised surface; chrome reflector; passive cooling of the LEDs through improved heat sink geometry; light colour 3000 K; binning initial MacAdam ≤ 3 SDCM; CRI ≥ 90; min. 90% of luminous flux after 50000 operating hours; energy-efficient high power LEDs with very good colour rendering; degree of protection IP20; PC2; incl. converter, non dimmable; through wiring connection box, 3-pole or 5-pole, available as an accessory; accessories are listed separately; light source not replaceable; control gear replaceable by an authorized professional; clank-free

Specification

Power
11.2W
Color Temperature
3000K
Light Source Type
LED
Lumen Output
642LM
Finishing
WHITE
IP Rating
IP20
Color Rendering
CRI >90
Driver
ON/OFF DRIVER

See more

LINEALIGHT
INGROUND UPLIGHT
OUTDOOR LIGHTING
Single emission uplights for outdoor application. The warm white LED light source with a flood light distribution is composed of 1 arrayled LEDs. The luminaire body is made of aisi 316l steel and features a steel finish; the diffuser is made of extra clear glass with a silk-screening treatment. The ingress protection degree is IP68,IK08.
LINEALIGHT
INGROUND UPLIGHT
INDOOR LIGHTING
Single emission uplights for indoor application. The warm white LED light source with a diffused light distribution is composed of 1 powerled LEDs. Luminaire body is made of ot58 brass and features a nickel finish, processed by means of galvanic nickel plating + brushing; the diffuser is made of extra clear glass - tempered with a sandblasting treatment. The ingress protection degree is IP44
LINEALIGHT
WALL LIGHT
OUTDOOR LIGHTING
Double emission wall lights for outdoor application. The warm white LED light source with a extra wide flood light distribution is composed of 2 arrayled LEDs. The device body is made of die-cast aluminium en ab - 46100 and features a embossed white ral 9003 finish, processed by means of open pore anodizing + powder coating; the diffuser is made of extra clear glass - tempered with a silk-screening treatment. The ingress protection degree is IP65; the total weight is of 1.5 kg. The device features protection class I and can be wall lights-mounted. Compliant with the EN 60598-1 standard and its specific provisions.
PLUS LIGHT TECH
RECESSED DOWNLIGHT
INDOOR LIGHTING

Luminaire ceiling-recessed downlight that highlight the desired subject or place and provide optimum illumination by being nondescript. Housing is made of Aluminum Pressure diecast ADC12 with special grade of powder coating PPG does not turn yellow over the lifespan of 10yrs. The mounting fixture is designed simply for ease of installation.
