Product Detail | Bloxlimited

XAL

LINEAR DOWNLIGHT

INDOOR LIGHTING

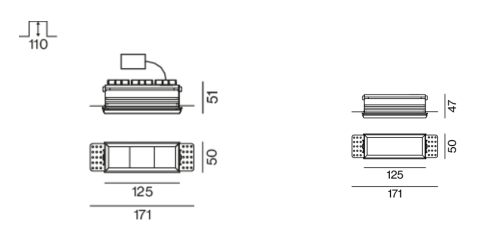

UNICO L3 BASIC_090-7L351F0B21 090-7L30100

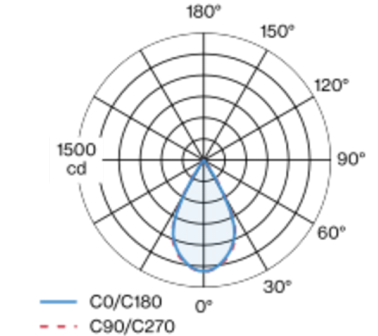

Rectangular recessed multi-downlight made of die-cast aluminium; installation without tools in mounting set due to patented ball catch system; rectangular installation housing; for trimless installation in plasterboard ceilings; suitable for ceiling thickness of 12.5/15/20/25 mm; equipped with three flood square light elements; symmetrical light distribution with precise radiation characteristic, beam angle 56°; high quality reflector with micro-faceted.

Specification

Power

9.8W

Color Temperature

3000K

Light Source Type

LED

Lumen Output

990LM

Finishing

TRIMLESS / BLACK REFLECTOR

IP Rating

IP20

Color Rendering

CRI 90

Driver

ON/OFF DRIVER

LINEALIGHT

RECESSED DOWNLIGHT

INDOOR LIGHTING

Single emission downlights for indoor application. The warm white LED light source with a medium flood light distribution is composed of 1 powerled LEDs. The device body is made of aluminium 6026 and features a embossed black ral 9005 finish, processed by means of powder coating; the diffuser is made of uv resistant polycarbonate. The ingress protection degree is IP44; the total weight is of 0.021 kg. The power supply driver is not provided and is to be ordered separately. The power supply cable is included and features a 0.170 m length. The device features protection class III and can be ceiling-mounted, with a 15 mm diameter hole (in plasterboard). Compliant with the EN 60598-1 standard and its specific provisions.

MEYER

PROJECTOR LIGHT

OUTDOOR LIGHTING

Housing made of die‑cast aluminum AlSi12, polyester powder coated by high‑quality and UV‑stabilized coating process, Colour: black ral 7021, all exterior parts are stainless steel, tempered safety glass, anti‑reflective coating from 1 side, silicon gasket, closure with 2 stainless steel screws, powder coated aluminum mounting bracket with tilt scale: 2 drilled holes Ø 8.5 mm, spacing 70 mm, 1 centre hole Ø 17 mm, tilt range: 120°, cable gland: PG11, connecting terminal: 3 pole, integral driver (AC/DC), CRI > 80, max 2 SDCM, service life L90/B10 > 50.000 h, Beam angle (fwhm): 50° / 72°, luminous flux: 2853 lm, wattage: 28 W, delivered lumens 102 lm/W, protection type IP65, protection class I, impact resistance IK08, windage area 0,04 m², dimensions (L×H×W): 140 × 175 × 190 mm, weight 2.1 kg. The modular luminaire design makes the replacement of components possible. The product meets the demands of the applicable EU guidelines and product safety regulations and bears the CE mark. Customized solutions and modifications are possible: Special ral, db or ncs colours as polyester powder coat, luminaires in 2700 K and other colour temperatures and versions for high ambient temperature.

SPARK

ADJUSTABLE DOWNLIGHT

INDOOR LIGHTING

Recessed adjustable rectangular downlight with snoot and luminaire body made of aluminium housing with white powder coated trim finish. Black finish and honeycomb accessory available upon request.

ELR

ADJUSTABLE DOWNLIGHT

INDOOR LIGHTING

Recessed round pinhole downlight compatible with 35 and 50 series LED modules. Various color temperature from 2700K to 5000K, TuneWHITE and Warm Dim etc. Up to 50,000 hours L80 lamp life with LM80 tested. LED chip packages. Beam pattern options 10, 20, 35, 60. Lumen from 310lm to 1600lm depending on LED module. 83mm cutout, Pinhole aperture 24mm. ATePS Automated Thermal Protection System. ComfyEYE, reduced flicker percentage. Interchangeable LED module system. Optional 40 linear lens, colour, light effect filters and honeycomb and anti-glare louvre.
