Product Detail | Bloxlimited

XAL

LINEAR DOWNLIGHT

INDOOR LIGHTING

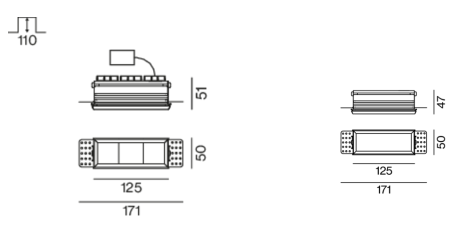

UNICO L3 BASIC_090-7L351F0021 090-7L30100

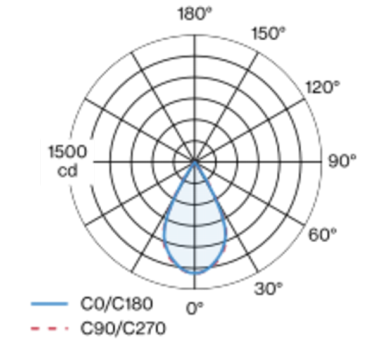

Rectangular recessed multi-downlight made of die-cast aluminium; installation without tools in mounting set due to patented ball catch system; rectangular installation housing; for trimless installation in plasterboard ceilings; suitable for ceiling thickness of 12.5/15/20/25 mm; equipped with three flood square light elements; symmetrical light distribution with precise radiation characteristic, beam angle 56°; high quality reflector with micro-faceted.

Specification

Power

9.8W

Color Temperature

3000K

Light Source Type

LED

Lumen Output

990LM

Finishing

TRIMLESS / CHROME REFLECTOR

IP Rating

IP20

Color Rendering

CRI 90

Driver

ON/OFF DRIVER

WE-EF

BOLLARD

OUTDOOR LIGHTING

IP55, Class I. IK10. Marine-grade, all-aluminium construction. 5CE superior corrosion protection including PCS hardware. Polycarbonate prismatic lens. Silicone rubber gaskets. Impregnated hardwood post. Integral EC electronic converter in thermally-separated compartment. Advanced thermal management protects LEDs while optimising lumens output.

IGUZZINI

RECESSED DOWNLIGHT

INDOOR LIGHTING

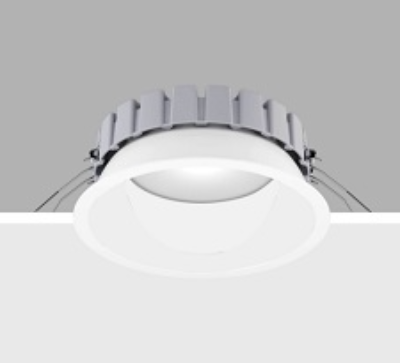

Round recessed luminaire with contact frame. Super Comfort fixed version: the LEDs are set a long way back to minimize glare and guarantee a high level of visual comfort. The main die-cast aluminium body includes a radiant surface that guarantees optimal heat dissipation. Metallised, thermoplastic, high definition reflector - medium optic (25°). Structure featuring a die-cast aluminium external contact frame with a white finish only. The internal ring is made of thermoplastic available in a range of painted and metallised finishes. Safety glass screen included

LINEALIGHT

RECESSED DOWNLIGHT

INDOOR LIGHTING

Single emission downlights for indoor application. The warm white LED light source with a spot light distribution is composed of 1 powerled LEDs. The device body is made of die-cast aluminium en ab - 46100 and features a white + black finish, processed by means of powder coating; the diffuser is made of pom-c. The ingress protection degree is IP20; the total weight is of 0.12 kg. The power supply driver is not provided and is to be ordered separately. The power supply cable is included and features a 0.170 m length. The device features protection class III and can be ceiling-mounted, with a 40 x 40 mm hole (in plasterboard). Compliant with the EN 60598-1 standard and its specific provisions.

UNILAMP

RECESSED DOWNLIGHT

OUTDOOR LIGHTING

Characterized by clean and clean-cut lines CORE is a family of square wall light, ceiling light, bollard and pole lights. CORE is available in two sizes and equipped with COB LED in three color temperatures and exceptional color consistency. The computer-aided-design of the parabolic reflector provides efficient light emission and distribution. The housing is dust and water protected through the extensive engineering design and testing. CORE is recommended to illuminate column, facades, walkways and vairous architectural design works. The pole lights give a great level of downward light with symmetric or asymmetric light distributions.
