XAL

track spotlight made of die cast aluminium housing body, DC24V fixture come with different mounting recessed or surface. Available beam angle from 15°, 25° and 60° and various of color temperature 2700K to 5700K. Suitable for cabinet light and display rack. IP20.

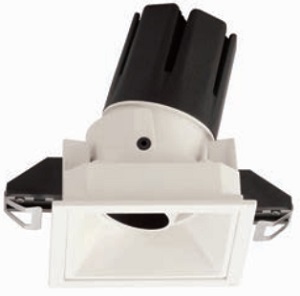

Single emission downlights for indoor application. The warm white LED light source with a flood light distribution is composed of 1 powerled LEDs. The device body is made of aluminium and features a embossed white ral 9003 finish, processed by means of coating. The ingress protection degree is IP40; the total weight is of 0.07 kg. The power supply driver is not provided and is to be ordered separately. The power supply cable is included and features a 0.12 m length. The device features protection class III and can be ceiling-mounted, with a 46 mm diameter hole (in plasterboard) with an outer casing, code 89374 (for concrete or masonry). Compliant with the EN 60598-1 standard and its specific provisions.

Housing made of die‑cast aluminum AlSi12, polyester powder coated by high‑quality and UV‑stabilized coating process, Colour: black ral 7021, all exterior parts are stainless steel, tempered high effiency safety glass, anti‑reflective coating from 1 side, silicon gasket, with 3 stainless steel screws, powder coated aluminum mounting bracket with tilt scale: 2 drilled holes Ø 7 mm, spacing 30 mm, 1 centre hole Ø 8.5 mm, tilt range: 140°, cable gland: M20, connecting terminal: 3 pole, highly efficient optics made of transparent thermoplastic for precise lighting tasks, integral driver (AC/DC), 80, max 2 SDCM, service life L90/B10 > 50.000 h, Beam angle (fwhm): 4°, luminous flux: 137 lm, wattage: 3 W, delivered lumens 46 lm/W, protection type IP65, protection class I, impact resistance IK08, windage area 0,01 m², dimensions: Ø 75 mm, width 125 mm, weight 0.8 kg. The modular luminaire design makes the replacement of components possible. The product meets the demands of the applicable EU guidelines and product safety regulations and bears the CE mark. Customized solutions and modifications are possible: Special ral, db or ncs colours as polyester powder coat, luminaires in 2700 K and other colour temperatures and versions for high ambient temperature.

Introducing a new addition to the Glare-less Spotlight family: an ultra-compact 30mm spotlight with recessed flange and track options.
