XAL

LINEAR DOWNLIGHT

INDOOR LIGHTING

090-7L451D0021 090-7L4020B

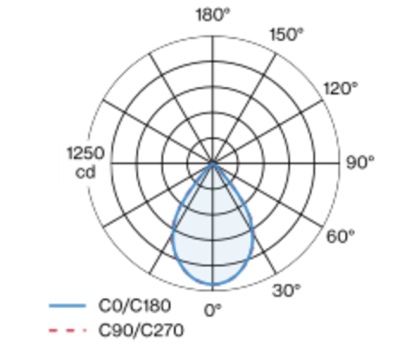

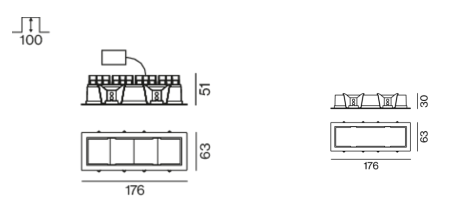

Rectangular recessed multi-downlight made of die-cast aluminium; installation without tools in mounting set due to patented ball catch system; rectangular installation housing; with trim jet black; suitable for ceiling thickness of 2-25 mm; equipped with four wide flood round light elements; symmetrical light distribution with precise radiation characteristic, beam angle 72°; high quality reflector with micro-faceted, aluminum-vaporised surface; chrome reflector; passive cooling of the LEDs through improved heat sink geometry; light colour 3000 K; binning initial MacAdam ≤ 3 SDCM; CRI ≥ 90; min. 90% of luminous flux after 50000 operating hours; energyefficient high power LEDs with very good colour rendering; degree of protection IP20; PC2; incl. converter, non dimmable; through wiring connection box, 3-pole or 5-pole, available as an accessory; accessories are listed separately; light source not replaceable; control gear replaceable by an authorized professional; clank-free

Specification

Power

13.9W

Color Temperature

3000K

Light Source Type

LED

Lumen Output

1370LM

Finishing

BLACK

IP Rating

IP20

Color Rendering

CRI >90

Driver

ON/OFF DRIVER

ACCLAIM

LED STRIP

OUTDOOR LIGHTING

Flex Tube Spectrum is a flexible, direct view, outdoor LED strip. The Quad Spectrum (or QS) version has the ability to create dedicated whites, dynamic white, and color-changing from the same product. It comes in a six-meter spool or custom-built lengths to suit project requirements and features a highly durable second-generation silicone body, which is outdoor rated and high impact resistant.

LUTRON

CONTROL SYSTEM

Often used in entryways to select Scene 1 and Off.• Large, rounded buttons are easy to use.• Backlit buttons with optional engraving make it easy tofind and operate the Wallstation in low light conditions.• Optional button engraving is angled up to the eye foreasy reading.• The LEDs next to each button are used duringprogramming and provide feedback when the buttonsare pressed.• Receives up to two contact closure inputs via aconnector on the back of the Wallstation.

FLOS

RECESSED DOWNLIGHT

INDOOR LIGHTING

LED lighting module, with low glare, to be inserted in the recessed frames (not included), installation through a bayonet system with interchangeable spots. Available in one-light versions and groups of two and four lights. Driver not included, the driver has to be directly connected to the embedding frames.

LINEALIGHT

PROJECTOR LIGHT

INDOOR LIGHTING

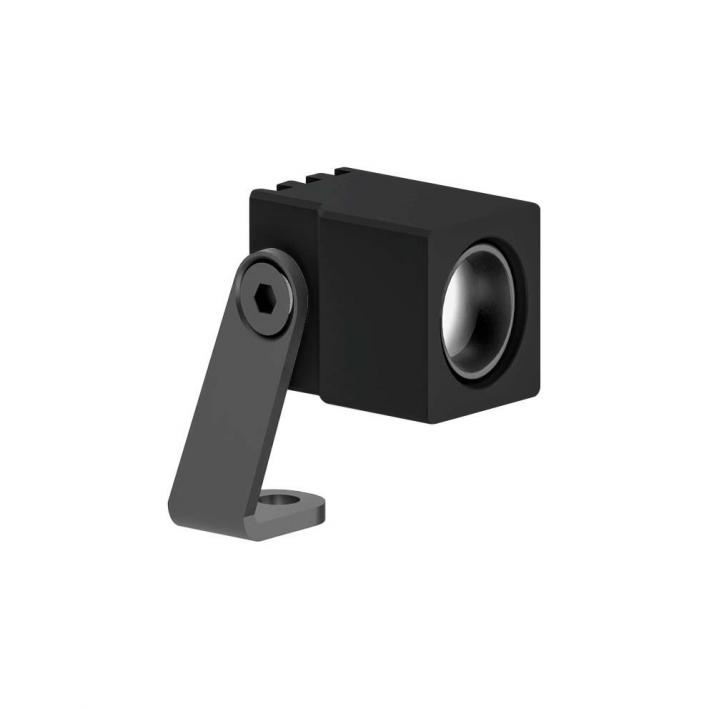

Single emission projectors for indoor application. The warm white LED light source with a medium flood light distribution is composed of 1 powerled LEDs. The device body is made of aluminium 6026 and features a embossed black ral 9005 finish, processed by means of powder coating. The ingress protection degree is IP40; the total weight is of 0.11 kg. The power supply driver is not provided and is to be ordered separately. The power supply cable is included and features a 1 m length. The device features protection class III and can be wall lights, ceiling or floor-mounted. Compliant with the EN 60598-1 standard and its specific provisions.
