SPARK

Ginko 3. 3 Outdoor surface mounted projector light (ceiling, wall, ground, spike), housing made of ANTICORODAL 6082 low-copper-content aluminium alloy for excellent resistance to corrosion, made entirely on a CNC lathe. Bracket in AISI 316L stainless steel, tumble finished and painted (painted version), body made of brass, produced entirely on a CNC lathe. Bracket made of brass. Optics available: 19°,33° and adjustable 32° x 73°. IP66, IK07.

Outdoor wall-mounted luminaire come with wide flood optic. The luminaire consists of an optical assembly upper cap and base for fixing to the wall. The optical assembly upper cap and base are made of die-cast aluminium alloy coated with liquid acrylic paint in high level of resistance to weather and UV rays. Transparent tempered sodium, calcium safety glass with customised grey serigraphy 4 mm thick joined to the optical assembly with silicone. The adjustable fixing bracket is made of painted aluminium. It has a single stainless steel M14x1 cable gland and FEP outlet cables L=150mm, electronic circuit with warm white LED and highly reflective thermoplastic internal reflector. IP66, IK07

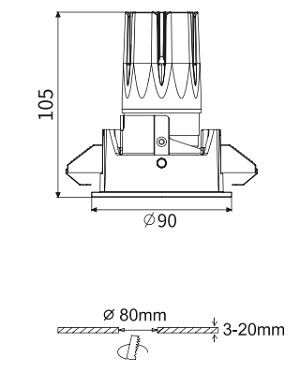

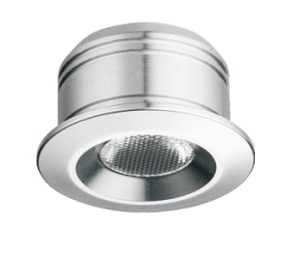

Recessed adjustable type downlight, aluminium housing, different types of beam angle.

The liminaire housing made of die‑cast aluminum AlSi12, polyester powder coated by high‑quality and UV‑stabilized coating process, Colour: silver grey , all exterior parts are stainless steel, tempered safety glass, anti‑reflective coating from 1 side, dark screenprint, silicon gasket, closure with 4 stainless steel screws, powder coated aluminum mounting bracket with tilt scale: 2 drilled holes Ø 8.5 mm, spacing 70 mm, 1 centre hole Ø 17 mm, tilt range: 120°, cable gland: M20, connecting terminal: 5 pole, highly efficient anodized rotationally symmetrical reflector with matt finish, integral driver (DALI), CRI > 80, max 2 SDCM, service life L90/B10 > 50.000 h, Beam angle (fwhm): 11° / 54°, luminous flux: 4225 lm, wattage: 48 W, delivered lumens 88 lm/W, protection type IP67, protection class I, impact resistance IK08, windage area 0,04 m², dimensions (L×H×W): 190 × 160 × 140 mm, weight 2.6 kg.
