SPARK

Single emission led strip for outdoor application. The warm white LED light source with a diffused light distribution is composed of 132 topled LEDs with CCT of 3000 K and a CRI 85; the source luminous flux is 1100 lm, with a 110.0 lm/W nominal luminous efficacy. The device body is made of technopolymer and features a white finish; the diffuser is made of pu. The ingress protection degree is IP68; the total weight is of 2.015 kg. The power supply driver is not provided and is to be ordered separ

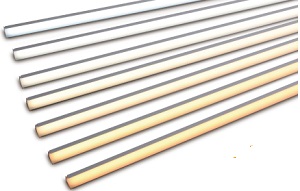

LED luminaire come with 2 types of LED pitch 7.1 or 17.8mm for profile and cove lighting. 5 types of wattage 2W/m to 15W/m in same LED pacakge to match CCT. High efficient LED package achieving up to 185 lm/W

Aluminium die cast housing in EN AB-47100 (low copper content) with high resistance against corrosion. Stone wash surface treatment prior to painting process. A4 grade Stainless Steel screws with 2,5-3% molybdenum content which increases the resistance against corrosion. Silicone gaskets. Painting Process : 3 Step Process. 1) Surface treatment with BONDERITE. A heavy metal free chemical surface treatment containing ceramic nano particles giving a cohesive, inorganic and highly dense protective coating. 2) PRE POLYMERIZATION a process of introducing an epoxy primer with excellent characteristics to the paint which also offers very high resistance to oxidation due to its Zinc content. 3) POLYMERIZATION a process with the application of polyester powder with high resistance against UV rays and harsh weather conditions. Resistance test protection for Marine applications for 1200h. Mechanical resistance IK 06.

Single emission lines for outdoor application. The warm white LED light source is composed of 18 powerled LEDs. The device body is made of aluminium 6060 and features a anodised aluminum finish, processed by means of 20 µm anodizing; the diffuser is made of extra clear glass - tempered with a silk-screening treatment. The ingress protection degree is IP67; the total weight is of 11 kg. The total absorbed power is 89 W. The power supply cable is included and features a 0.17 m length. The device features protection class I and can be floor-mounted with an outer casing, code 99772 (for concrete or masonry). Compliant with the EN 60598-1 standard and its specific provisions.
