SPARK

In Curved Air is an archetype of essential design: the arch traces a light, curved space. Materials and textures alternate from the rope-dyed nautical cord on the stem, to the hand-polished concrete base, and the smooth metal dome. At its core, a custom Fresnel optic delivers precise, welcoming light for terraces, verandas, and porches. A gesture in the air that tells the story of design evolution. IK08

AL Dot AC is a direct view, RDM / DMX node, designed for low-resolution graphics displays and individual dots of color. Available in a diffused flat or diffused dome lens, it also features an internal DMX + AC driver and all-aluminum construction. It can be used indoor or outdoor and carries an IP66 outdoor rating.

LED accent lighting module to be installed in the Zero Track system. Incorporated

DC/DC electronic converter. Module regulated via Casambi driver, 1–10-V or DALI in

broadcast mode. To individually control the lights, select integrated Casambi

versions.

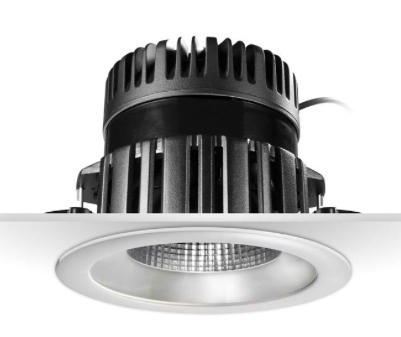

Round recessed downlight made of die-cast aluminium with white powder-coating finish (RAL 9016) and white reflector; ON-OFF Driver; System Power 28W; measurements Ø162mm x 190mm; ceiling cutout of Ø150mm with a narrow mounting trim; ceiling thickness 1-35mm; rotation 355° and pivot max. 30°; CCT 3000K with a System luminous flux of 2600lm; high color rendering at an index of CRI90; after a lifetime of 50000h L80B10 min. 80% of the luminous flux with energy efficient CITIZEN LED Chips; 5 years warranty; beam characteristic with 24° beam angle; lighting perfectly suitable for reading, writing as well as computer and control work with UGR<19; degree of housing protection IP54; light source replaceable by a qualified electrician; driver replaceable by a qualified electrician
