SPARK

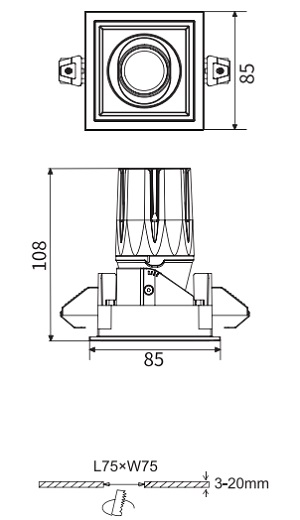

Flush mount installation on false ceilings of thickness 12.5 to 25 mm for Minimal versions (without perimeter flap) or 1 to 25 mm for Frame versions (with flap) using steel wire springs. Frame and heat sink in die-cast aluminium. Reflector in metallic-finish thermoplastic material with scratch protection for excellent lighting effi ciency and visual comfort. Controlled luminance emissions, UGR<13 comfort and UGR<10 super comfort versions. Available with on-off wiring and dimmable versions.

Luminaire: cast aluminium, black powder-coated, designed as heat sink, with connection cable L 850mm. Gimbal suspension: polymer, black. Luminaire 0°-40° tilt.

Round recessed wall washer luminaire with contact frame, the optic system is designed to aim the light flow on a vertical surface with no shadow zones and a precise outline. The main die-cast aluminium body includes a radiant surface that guarantees optimal heat dissipation. Structure featuring a die-cast aluminium external contact frame with a white finish only. The optical assembly includes two shaped metallised thermoplastic reflectors, a PMMA refractor/protective screen and a plastic anti-glare case available in different painted or metallised finishes. Quick, easy, tool-free assembly

Outdoor inground uplight body and front locking trim in AISI 316L stainless steel. IP68 Degree of protection with Full Dry system which avoids condensation inside the product. The Installation of the recessed housing in cast concrete with a 20-30 cm gravel soak away. Only an IP68 connection to the power supply can guarantee the same protection to the fixture.  IK10
