SPARK

Monospot pole luminaires in sizes 3 and 4 can be equipped with a Zhaga 18 connection socket. To this standardised interface, communication nodes for wireless control and monitoring are connected. Switch-on and switch-off times can be scheduled and light levels can be controlled flexibly via remote access. In addition, the status of each luminaire is monitored in real-time. Operators of public lighting systems benefit from efficient and cost-effective maintenance. The luminaires have integral DALI drivers with D4i standard.

"Copper Free" Aluminium die cast housing in EN AB-44100 with high resistance against corrosion. Stone wash surface treatment prior to painting process. Aluminium protective guard of 8 mm thickness. A4 grade Stainless Steel screws with 2,5-3% molybdenum content which increases the resistance against corrosion. Pre treated Silicone Gaskets. Painting Process: 3 Step Process 1) Surface treatment with BONDERITE. A heavy metal free chemical surface treatment containing ceramic nano particles giving a cohesive, inorganic and highly dense protective coating. 2) PRE POLYMERIZATION a process of introducing an epoxy primer with excellent characteristics to the paint which also offers very high resistance to oxidation due to its Zinc content. 3) POLYMERIZATION a process with the application of polyester powder with high resistance against UV rays and harsh weather conditions. Resistance test protection for Marine applications for 1200h. Mechanical resistance IK 10 Maximum load capacity 2000 Kg. This luminaire contains built-in LED modules. In case of damage or malfunction please contact the manufacturer to receive additional instructions on how to replace and relative spare parts to order. The LED modules cannot be handled in the luminaire by the end user. This product contains a light source of energy efficiency class: E. LED modules are engineered accordingly to the existing regulations of Lumen Maintenance (LM80) and Technical Memorandum (TM21), where uniformity and quality of the light is 70,000 hours referred to L80 B10 Ta 25 ° C (50,000 hours referable to L80 B10 Ta 40°C). Lifespan of the luminaire min. 50,000 hours at 40°C. Performance Ambient temperature Tq 25°C. Operating ambient temperature range is from -20°C to +50°C. Storage temperature range from -20°C to +60°C.

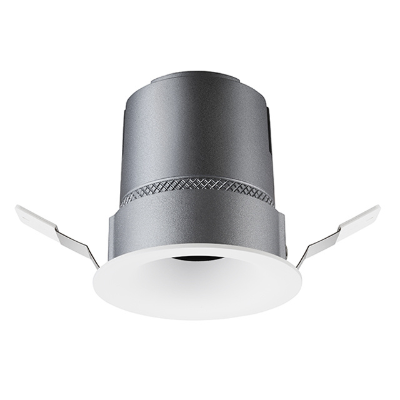

Round recessed spotlight luminaire is made of die-cast aluminium housing. 1 lamp; surface matt silver. 360° rotatable and 30° tiltable. Installation without tools in mounting set due to patented ball catch system. Round installation housing. Suitable for ceiling thickness of 2-25 mm. Passive cooling of the LEDs through improved heat sink geometry. With COB (Chip on Board) technology for maximum efficiency; no appearance of multiple shadows.

Single emission downlights for indoor application. The warm white LED light source with a flood light distribution is composed of 1 arrayled LEDs. The device body is made of die-cast aluminium en ab - 46100 and features a white finish, processed by means of powder coating; the diffuser is made of uv resistant polycarbonate. The ingress protection degree is IP44; the total weight is of 0.511 kg. The power supply driver is not provided and is to be ordered separately. The power supply cable is included and features a 0.300 m length. The device features protection class III and can be ceiling-mounted, with a 95 mm diameter hole (in plasterboard). Compliant with the EN 60598-1 standard and its specific provisions.
