XAL

LINEAR DOWNLIGHT

INDOOR LIGHTING

090-7L451K0021 090-7L4020W

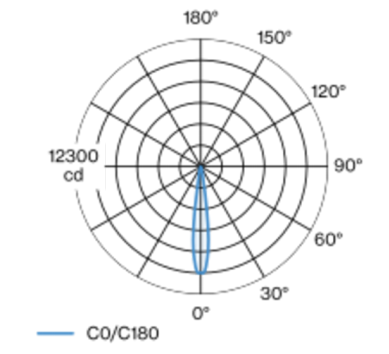

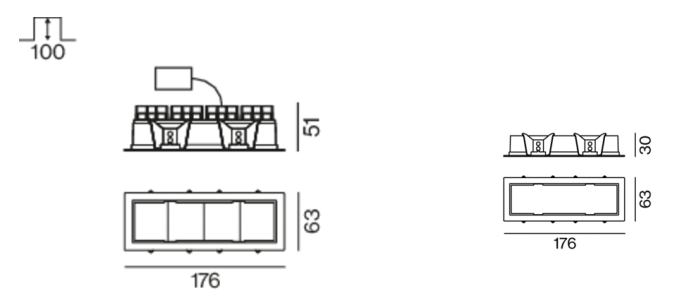

Rectangular recessed multi-downlight made of die-cast aluminium; installation without tools in mounting set due to patented ball catch system; rectangular installation housing; with trim traffic white; suitable for ceiling thickness of 2-25 mm; equipped with four spot round light elements; symmetrical light distribution with precise radiation characteristic, beam angle 15°; high quality reflector with micro-faceted, aluminum-vaporised surface; chrome reflector; UGR ≤ 10; VDU compatible workplace luminaire according to DIN EN 12464-1; luminance above 65° ≤ 1500 cd/m²; passive cooling of the LEDs through improved heat sink geometry; light colour 3000 K; binning initial MacAdam ≤ 3 SDCM; CRI ≥ 90; min. 90% of luminous flux after 50000 operating hours; energyefficient high power LEDs with very good colour rendering; degree of protection IP20; PC2; incl. converter, non dimmable; through wiring connection box, 3-pole or 5-pole, available as an accessory; accessories are listed separately; light source not replaceable; control gear replaceable by an authorized professional; clank-free;

Specification

Power

13.9W

Color Temperature

3000K

Light Source Type

LED

Lumen Output

886LM

Finishing

WHITE

IP Rating

IP20

Color Rendering

CRI >90

Driver

ON/OFF DRIVER

DELTALIGHT

SURFACE MOUNTED DOWNLIGHT

INDOOR LIGHTING

Dot.com come with Small version only needs 25mm of width, a nearly invisible appearance yet with visible impact. The Medium range includes an adjustable version - with tilting possibility of 30° - ideal for instance to emphasize an artwork on the wall. With an output up to 12W per luminaire, the Large range is the most powerful within the Dot.Com series. It comes in both recessed and surface mounted solutions. The luminaire is not only limited to spotlight beam angles, it also has linear wallwashers in its range for a soft, even light effect on vertical surfaces. These come as single luminaires, as modules to fit in the magnetic profiles and as a bespoke trimless profile solution, perfect to adapt the light to your specific desires.

FORMALIGHTING

ADJUSTABLE DOWNLIGHT

INDOOR LIGHTING

The Spotify Concave Round series is versatile downlights with high-definition optics and advanced LED technology delivering optimal visual comfort. Available in Dia 76 and 100 mm, trim and trimless versions with tools-free interchangeable optics accessories, it is fully adjustable with vertical tilt 0°-35° inside the ceiling level and rotates 355°.Developed as an ECO design for the circular economy, with its modularity, interchangeable optics and accessories, and tool-free mounting.Application areas: Highend residential and retail projects, hotels, museums, and galleries. The color temperature avaiable 2700k,3000k,3500k and 4000k.

ELR

RECESSED DOWNLIGHT

OUTDOOR LIGHTING

Recessed fixed downlight compatible with 35 and 50 series LED modules. Colour temperature options 2700K,3000K, 4000K, 5000K, tuneWHITE, WarmDim. Luminous flux 335lm to 1500lm depending on LED module. 76mm cutout, ATePS Automated Thermal Protection System,ComfyEYE reduced flicker percentage, Interchangeable LED module system.

TRAXON

LED DOT

OUTDOOR LIGHTING

Allegro Dot is the next generation of intelligent media dot family. The dots are constructed on a flexible cable with customizable pitch. The dots can provide advanced features and flexibility for lighting design and project execution. Customizable pitch containing up to 40 RGB/ 36RGBW dots max in Dot M and 28 RGB/ 26RGBW dots max in Dot L.
