XAL

LINEAR DOWNLIGHT

INDOOR LIGHTING

090-7L651N0021 090-7L6020W

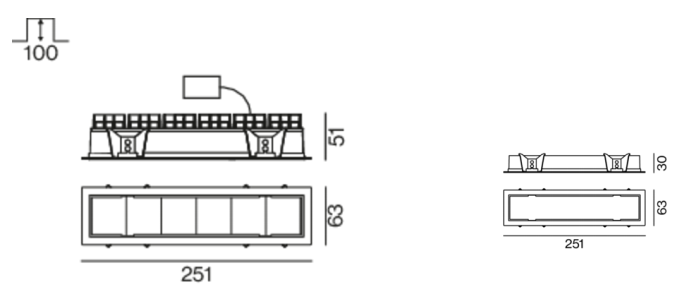

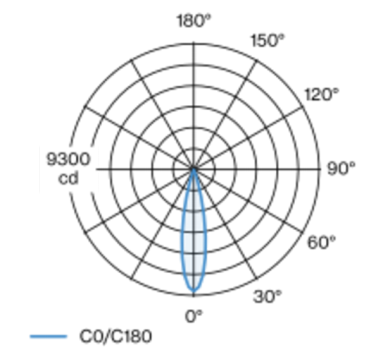

Rectangular recessed multi-downlight made of die-cast aluminium; installation without tools in mounting set due to patented ball catch system; rectangular installation housing; with trim traffic white; suitable for ceiling thickness of 2-25 mm; equipped with six narrow medium round light elements; symmetrical light distribution with precise radiation characteristic, beam angle 22°; high quality reflector with micro-faceted, aluminum-vaporised surface; chrome reflector; passive cooling of the LEDs through improved heat sink geometry; light colour 3000 K; binning initial MacAdam ≤ 3 SDCM; CRI ≥ 90; min. 90% of luminous flux after 50000 operating hours; energyefficient high power LEDs with very good colour rendering; degree of protection IP20; PC2; incl. converter, non dimmable; through wiring connection box, 3-pole or 5-pole, available as an accessory; accessories are listed separately; light source not replaceable; control gear replaceable by an authorized professional; clank-free

Specification

Power

19.8W

Color Temperature

3000K

Light Source Type

LED

Lumen Output

2080LM

Finishing

BLACK

IP Rating

IP20

Color Rendering

CRI >90

Driver

ON/OFF DRIVER

XAL

LINEAR DOWNLIGHT

OUTDOOR LIGHTING

Rectangular recessed multi-downlight made of die-cast aluminium; equipped with two (L2) / three (L3) individually selectable or pre-specified, customised light elements; installation without tools in mounting set with ball catch system; easy electrical installation by means of reverse polarity protected plug-in connections; suitable for ceiling thickness of 2-25 mm; surface powder coated; installation possible in different housings; high quality reflector with micro-faceted.

LINEALIGHT

LED STRIP

OUTDOOR LIGHTING

Single emission led strip for outdoor application. The warm white LED light source with a medium wide flood light distribution is composed of 54 topled LEDs with CCT of 3000 K and a CRI 85; the source luminous flux is 2300 lm, with a 115.0 lm/W nominal luminous efficacy. The device body is made of technopolymer and features a black finish; the diffuser is made of pu. The ingress protection degree is IP67; the total weight is of 1.710 kg. The power supply driver is not provided and is to be order

TRAXON

WALLWASHER

OUTDOOR LIGHTING

ARCHISHAPE® 2.0 Linear Power is a compact, highly reliable, and energy efficient exterior LED liner with built-in driver, unique water-proof structure and excellent lighting effect. The ARCHISHAPE® 2.0 Linear product series offers a variety of white CCT options, beam angles and power ranges with static on/off or dynamic control options via standard DMX-512. It is ideal for wall washing application to create dynamic lighting experiences while maintaining superior color consistency..
