XAL

LINEAR DOWNLIGHT

INDOOR LIGHTING

090-7L651E0021 090-7L60100

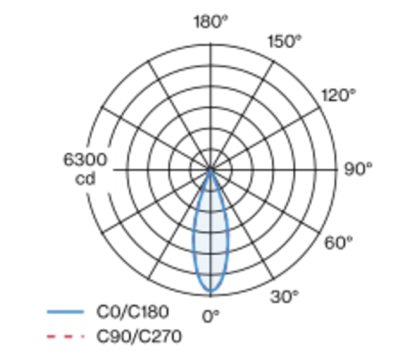

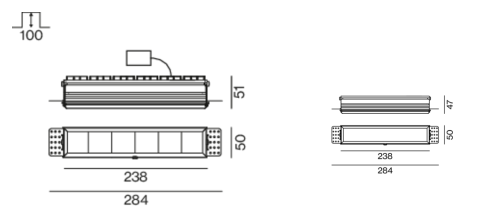

Rectangular recessed multi-downlight made of die-cast aluminium; installation without tools in mounting set due to patented ball catch system; rectangular installation housing; for trimless installation in plasterboard ceilings; suitable for ceiling thickness of 12.5/15/20/25 mm; equipped with six medium square light elements; symmetrical light distribution with precise radiation characteristic, beam angle 32°; high quality reflector with micro-faceted, aluminum-vaporised surface; chrome reflector; UGR ≤ 10; VDU compatible workplace luminaire according to DIN EN 12464-1; luminance above 65° ≤ 3000 cd/m²; passive cooling of the LEDs through improved heat sink geometry; light colour 3000 K; binning initial MacAdam ≤ 3 SDCM; CRI ≥ 90; min. 90% of luminous flux after 50000 operating hours; energy-efficient high power LEDs with very good colour rendering; degree of protection IP20; PC2; incl. converter, non dimmable; through wiring connection box, 3-pole or 5-pole, available as an accessory; accessories are listed separately; light source not replaceable; control gear replaceable by an authorized professional; clank-free

Specification

Power

19.8W

Color Temperature

3000K

Light Source Type

LED

Lumen Output

1690LM

Finishing

CHROME

IP Rating

IP20

Color Rendering

CRI >90

Driver

ON/OFF DRIVER

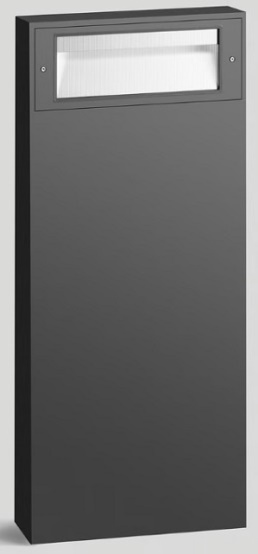

BEGA

BOLLARD

OUTDOOR LIGHTING

Bollard with single sided light output and flat beam light distribution. The light is directed downwards and is shielded above the horizontal. For broad spread and uniform illumination of surfaces and paths.Luminaire made of aluminium profile, aluminium alloy, aluminium and stainless steel. IP65,IK08. DIMENSION:(W)340x(H)800x(D)100mm.

FORMALIGHTING

SURFACE MOUNTED LIGHT

INDOOR LIGHTING

The new Canali edge is a revolutionary edge-less lighting system featuring easy and clean installation, eliminating wired connections and gearboxes in the cove. Canali Edge profile features easy-to-clip on adjustable spotlights, together with a dedicated channel for linear cove lights fixed by magnets, all in extruded aluminum. The Integrated 3 phase track system with DALI bus enables full DALI control on both linear and track spots. Small and powerful in-track integrated drivers make it very easy to move and reposition the spotlights and the linear lights.

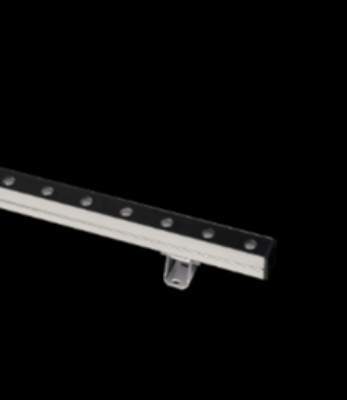

LED LINEAR

LINEAR LIGHT

OUTDOOR LIGHTING

IP68, dot free linear light line with a 16 mm x 16 mm cross section. Opal PVC extrusion body sealed with ultrasonic welded end caps and a twin barrier against water ingress. Special PVC material composition, which is Chlorine resistant for continuous immersion in water with chlorine concentration up to 5 ppm. Length are freely configurable between 544 mm and 5,044 mm in steps of 62.5 mm. Fixture comes with a backside cable exit with 5 m open end cable (chlorin resistant). Light source assembled using state of the art automated Reel-to-Reel production process supporting LED Linear™ Tj Away® thin flexible circuit board technology.
