SPARK

Housing made of corrosion‑resistant die‑cast aluminum AlSi12, polyester powder coated by high‑quality and UV‑stabilized coating process, Colour: black ral 7021, all exterior parts are stainless steel, tempered safety glass, anti‑reflective coating from 1 side, silicon gasket, closure with 2 stainless steel screws, mounting bracket: 1 elongated hole Ø 7 mm, spacing 18 mm, 1 centre hole Ø 8.5 mm, tilt range: 180°, cable gland: M16, connecting terminal: 3 pole, precise PMMA optics, integral driver (AC/DC), CRI > 70, max 2 SDCM, service life L90/B10 > 50.000 h, luminous flux: 679 lm, wattage: 9 W, delivered lumens 75 lm/W, protection type IP67, protection class I, impact resistance IK08, windage area 0,012 m², dimensions: Ø 123 mm, width 87 mm, weight 1.8 kg. The modular luminaire design makes the replacement of components possible. The product meets the demands of the applicable EU guidelines and product safety regulations and bears the CE and ENEC marks. Customized solutions and modifications are possible: Special ral, db or ncs colours as polyester powder coat, luminaires in 2700 K and other colour temperatures and versions for high ambient temperature.

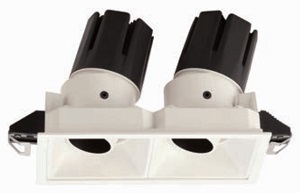

Rotatability 350°, pivotability 30° · Series compatible with each other, uniform cutout diameter · Weight: 0.30 grams · 2 powder-coated color options · RAL colors on request· Dimmability depends on the ballast· CRI > 90 · MacAdam: 3 · Beam widths: "Flood", "Medium", "Spot/Superspot" · IP protection type IP65 · Height: 95 mm · Diameter: 82 mm

rotation 355° and pivot max. 30°; after a lifetime of 50000h min. 80% of the luminous flux with energy efficient CITIZEN LED Chips; 5 years warranty; beam characteristic with 35° beam angle; lighting perfectly suitable for reading, writing as well as computer and control work according to DIN EN 12464-1 (UGR<19); degree of housing protection IP20 (LED Module IP54)

24 V, IP67 protected and IK10 certified, linear LED luminaire for indoor and outdoor in-ground installation. Suitable for installation into roads and parking lots according to EN 60598-2-13. To be walked on and traversed by vehicles with air filled tires (including trucks used for delivery). Polyurethane encapsulation offering a premium water proof sealing (values), UV resistance (no coloration or increase of absorption) chemical stability against urban gazes and protection against abrasion. Stainless Steel V4A housing delivered with male/female IP67 connectors. Available either with an opal top layer or transluscent with an internal 10° and 30° lenses for wall grazing. Light source assembled using state of the art automated Reel-to-Reel (R2R) production process supporting LED Linear™ Tj Away thin flexible circuit board technology.
