SPARK

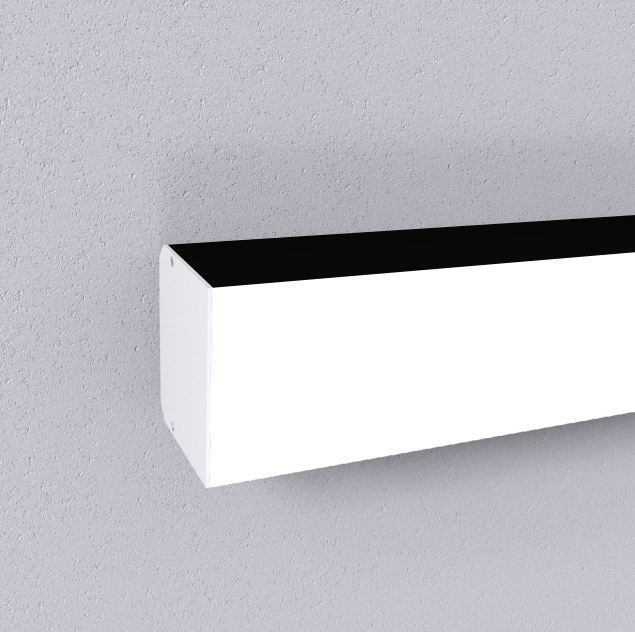

Luci Creide lens" is a cove lighting for narrow spaces which focuses on beam angles and stretch of light. The fixture design is based on compact cross-sectional size and basic specification of "Luci Creide®" Special intensive luminous distribution by linear lens between LED and diffused cover creates an extended and smooth gradation of light.

Inground uplight made of aluminium alloy and stainless steel hosing, Borosilicone glass and silicon gasket. Luminaire, with mounting plate for bolting onto a foundation or onto a connecting housing Mounting plate of stainless steel. IP67,IK10.DIMENSION:(W)270x(H)270x(D)55mm.

Light fixture with high-performance LED light sources. Drive-over recessed floor installation with floorprotruding cap. All the versions are drive-over up to 5000Kg. Due to the low height of the cap, Megara 90 is also suitable for installation in walk-over areas, being careful to avoid areas of direct transit. Composed by body, cap, diffuser, recessing box. Body and cap in painted EN AB44100 aluminium, silicone gaskets; provided with 30 cm-long pre-resined three-pole connection cable. Electronic ballast integrated in the body. Diffuser in UV resistant polycarbonate.Power connection to the mains by means of the IP67 connector supplied with the light fixture, which can be housed in the recessing box and is suitable for cables with a diameter from 5 to13.3 mm. Fixing to the recessing box is ensured by means of anti-vandal screws TORX. Recessing box for laying in reinforced polymer to be ordered separately. Radial emission beam optic. White monochromatic LEDs available in 3 colour temperatures in AISI 316 stainless steel. Painted die-cast aluminium with 3-stage outdoor treatment. Technical features of light fixtures in compliance with EN60598-1 and part 2-13. IP Rating IP65-IP67.ENEC approved.Insulation class I.

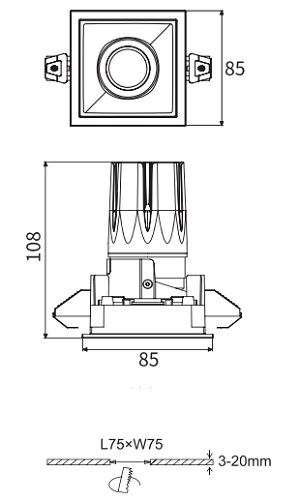

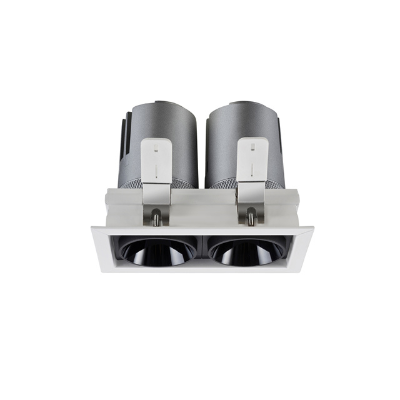

Recessed luminaire with LED light source. Remote transformer not included. Installation frame not necessary. Diffusing lens included.
