SPARK

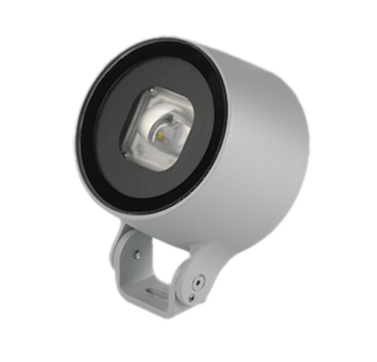

Surface mounted (ceiling, wall, ground, spike). 25W, 24Vdc, 1890 lm source / 1575 lm delivered (3000K, CRI >90). 1 COB LED, 55,000h L70 B10. Optics: 12°–66° adjustable zoom (magnet). Body: CNC-machined Anticorodal aluminium, anthracite finish, tempered extra-clear glass screen. IP66, IK08, -20°C to +50°C, Class III. Size Ø80×123 mm, 1.1 kg. Features: Casambi control, IPS protection, glow wire 960°C. Accessories: snoots, honeycomb louvre, spike, magnet.

Protection class IP68 – up to 3m water depth. Protection class IP69 - protection against high pressure and high jet water temperatures. Entirely made of stainless steel 316Ti 1.4571. Mounting foot adjustable through 180° or 90°. Operating mode: constant current. POW-LED cold white, warm white, neutral white, CC POW-LED RGB. Operating mode: constant voltage. POW-LED cold white, warm white, neutral white, CV. Multichip POW-LED RGB-W. POW-LED-Platine temperature control (NTC). Cable gland PG16/21, marine grade 316Ti stainless steel. Temperature-resistant silicon seal. Toughened safety glass. Supplied with 3 m cable

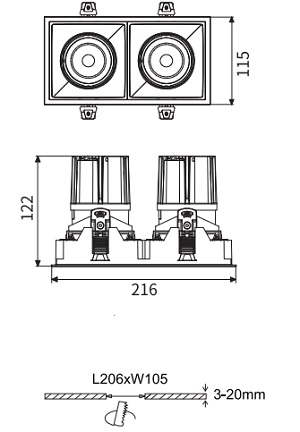

Recessed adjustable square downlight with snoot and luminaire body made of aluminium housing with white powder coated trim finish. Black finish and honeycomb accessory available upon request.

Direct light luminaire, designed to use monochrome LED lamps. Ceiling- and wall-mounted. Consists of a body and supports for installation (to be ordered separately). Extruded aluminium boy, with zamak die-cast end caps complete with silicone seals. Coated with liquid acrylic paint with a high level of weather and UV ray resistance. The top of the optical assembly is closed by a 3 mm thick transparent glass screen, fixed with silicone. Complete with multi-LED power plate in Warm White 3100K with 24V dc electronic circuit (ballast to be ordered separately); 24V smart driver allowing constant light flow emission despite variations in the input voltage (from 30V dc to 16V dc). Fitted with a PMMA diffusing filter and optic with plastic (methacrylate) lens for Wall Grazing lighting. All external screws used are made of A2 stainless steel. The luminaire technical characteristics conform to EN 60598-1 standards and particular requirements. BH17: 37 surface Full Remote - 12 Warm White LEDs - 24V dc - L=1056mm - Wall Grazing Optic
