LINEALIGHT

RECESSED DOWNLIGHT

INDOOR LIGHTING

64509W15

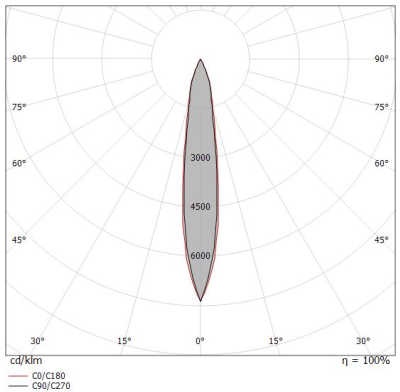

Single emission downlights for indoor application. The warm white LED light source with a medium wide flood light distribution is composed of 3 powerled LEDs with CCT of 3000 K and a CRI 80; the source luminous flux is 1470 lm, with a 122.5 lm/W nominal luminous efficacy. The device body is made of iron and features a white + black finish, processed by means of powder coating; the diffuser is made of pet. The ingress protection degree is IP20; the total weight is of 0.36 kg. The power supply driver is not provided and is to be ordered separately. The total absorbed power is 12 W. The power supply cable is included and features a 0.170 m length. The device features protection class III and can be ceiling-mounted, with a 113 x 42 mm hole (in plasterboard). Compliant with the EN 60598-1 standard and its specific provisions.

Specification

Power

12W

Color Temperature

3000K

Light Source Type

LED

Lumen Output

894LM

Finishing

BLACK

IP Rating

IP20

Color Rendering

CRI 80

Driver

ON/OFF DRIVER

LINEALIGHT

UP/DOWN WALL LIGHT

OUTDOOR LIGHTING

Single emission uplights for outdoor application. The warm white LED light source with a flood light distribution is composed of 1 powerled LEDs. The device body is made of die-cast aluminium en ab - 46100 and features a black finish, processed by means of open pore anodizing + powder coating; the diffuser is made of extra clear glass - tempered. The ingress protection degree is IP68; the total weight is of 0.2 kg. The power supply driver is not provided and is to be ordered separately. The power supply cable is included and features a 1 m length. The device features protection class III and can be floor-mounted with an outer casing, code 99855 (for concrete or masonry). Compliant with the EN 60598-1 standard and its specific provisions.

LINEALIGHT

UNDERWATER LIGHT

OUTDOOR LIGHTING

Single emission submerged for outdoor application. The natural white LED light source with a elliptic m. flood (30°÷39°) x (41°÷60°) light distribution is composed of 3 powerled LEDs. The luminaire is made of aisi 316l steel and features a steel finish; the diffuser is made of extra clear glass - tempered with a silk-screening treatment. The ingress protection degree is IP68, IK10.

MEYER

FLOODLIGHT

OUTDOOR LIGHTING

Monospot pole luminaires in sizes 3 and 4 can be equipped with a Zhaga 18 connection socket. To this standardised interface, communication nodes for wireless control and monitoring are connected. Switch-on and switch-off times can be scheduled and light levels can be controlled flexibly via remote access. In addition, the status of each luminaire is monitored in real-time. Operators of public lighting systems benefit from efficient and cost-effective maintenance. The luminaires have integral DALI drivers with D4i standard.
