Products

LINEALIGHT

CEILING LIGHT
INDOOR LIGHTING
82606W07

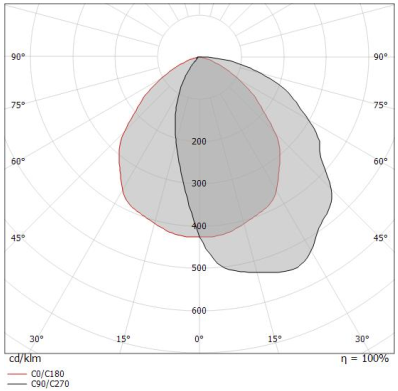

Single emission ceiling lights for indoor application. The warm white LED light source with a asymmetric wallwasher light distribution is composed of 6 powerled LEDs with CCT of 3000 K and a CRI 90; the source luminous flux is 2202 lm, with a 115.9 lm/W nominal luminous efficacy. The device body is made of aluminium 6060 and features a embossed black ral 9005 finish, processed by means of powder coating; the diffuser is made of PC. The ingress protection degree is IP20; the total weight is of 0.6 kg. The total absorbed power is 21 W. The power supply cable is included and features a 0.170 m length. The device features protection class II and can be ceiling-mounted. Compliant with the EN 60598-1 standard and its specific provisions.

Specification

Power
21W
Color Temperature
3000K
Light Source Type
LED
Lumen Output
994LM
Finishing
BLACK
IP Rating
IP20
Color Rendering
CRI 90
Driver
ON/OFF DRIVER

See more

LINEALIGHT
WALLWASHER
INDOOR LIGHTING
Single emission lines for indoor application. The warm white LED light source with a diffused light distribution is composed of 90 topled LEDs. The device body is made of PC and features a opal white finish; the diffuser is made of PC. The ingress protection degree is IP40; the total weight is of 0.028 kg. The power supply driver is not provided and is to be ordered separately. The power supply cable is included and features a 0.2 m length. The device features protection class III and can be wall lights or ceilingmounted, with a 510 x 10 mm hole (in plasterboard). Compliant with the EN 60598-1 standard and its specific provisions.
LUCE & LIGHT
SPOTLIGHT
OUTDOOR LIGHTING

Pivot Mini 1outdoor applications surface mounted (ceiling, wall, floor) housing made of ANTICORODAL EN AW 6082 low-copper-content aluminium alloy for excellent resistance to corrosion, made entirely on a CNC lathe. Bracket in AISI 316L stainless steel, tumble finished and painted (painted version), body made of brass, produced entirely on a CNC lathe. Bracket made of brass.  Optics available for 15°, 21°, sharp 30°, 35°. IP66, IK06.

SPARK
LINEAR DOWNLIGHT
INDOOR LIGHTING

Recessed linear downlight, luminaire body made of aluminium housing with white powder coated trim finish. Reflector available Silver, Black Chrome and White finish. Black finish and honeycomb accessory available upon request.

SPARK
FLOODLIGHT
OUTDOOR LIGHTING

Unique mini square-shape structure design, Aluminum alloy housing, Multiple light distribution options. Easy for installation, replacement and maintenance, Compact design for versatile use in the outdoor applications, such as ancient building, temple, small town, etc.
