SPARK

RECESSED DOWNLIGHT

INDOOR LIGHTING

SPK2611-20W-24D

Recessed fixed square downlight, luminaire body made of aluminium housing with white powder coated trim finish. Reflector come with Chrome black, White and Silver finish. Honeycomb accessory available upon request.

Specification

Power

20W

Color Temperature

3000K

Light Source Type

LED

Lumen Output

1052LM

Finishing

WHITE

IP Rating

IP20

Color Rendering

CRI 90

Driver

ON/OFF DRIVER

DALITEK

CONTROL SYSTEM

6 channels 10A/CH switch output, 6 channels 0-10V control signal. Switch relays and 0-10V channels can be controlled separately. 220V ± 10% 50Hz Single phase 0.1A. Phase-independent. Control input: 1 × RS485 network serial port input; 1 × AUX dry contact input. Internal control: Build in programmable logic controller. Network DC power: 90mA DC12V. Presets scenes: 96 (no loss of information due to power failure. DIN rail installation

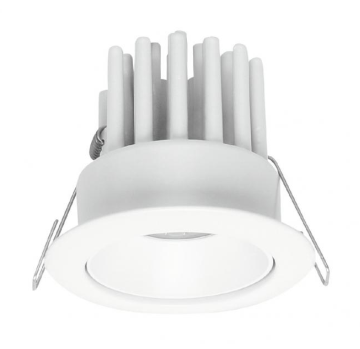

SPARK

RECESSED DOWNLIGHT

INDOOR LIGHTING

Recessed pin-hole downlight made of aluminium housing with white powder coated finish. Black finish available upon request. Luminaire come with 2 different sizes, 6-8W in Ø63mm and 8-15W in Ø90mm.

LUCI

LED STRIP

OUTDOOR LIGHTING

Side bend dot-free flexible light, cuttable every 50mm at site Updated with low wattage high lumen LED series Available 4 different wattage variations Indoor usage only, custom length max.5m per roll, connectable 10m per circuit
