SPARK

Square recessed ceiling downlight made of die-cast aluminium with black powder-coating finish (RAL 9005) and black reflector; LED 2*11W; measurement 142mm x 78mm; ceiling cutout of 133mm x 68mm with a narrow mounting trim; CCT 3000K with an LED Output of 2*1200lm; high color rendering at an index of CRI90; after a lifetime of 50000h min. 80% of the luminous flux with energy efficient CITIZEN LED Chips; 5 years warranty; narrow beam characteristic with 24° beam angle; lighting perfectly suitable for reading, writing as well as computer and control work according to DIN EN 12464-1 (UGR<19); degree of housing protection according to DIN EN 60529 (IP20); light source replaceable by a qualified electrician; driver replaceable by a qualified electrician.

Round light fitting in aluminium; recessed light with wrap around edge; suitable for ceiling thickness of 10-25 mm; surface white powder coated; installation without tools using snap spring closure; external converter for ceiling insertion, through-wiring suitable; electrical connection by means of reverse polarity protected plug system; LED board highly reflective lacquered for higher efficiency; light colour 3000 K; binning initial MacAdam Notes Count / Date General Ceiling / Wall , Recessed white , RAL9010 IP40 4020 lm 1 LED 3000 K CRI ≥ 80 L90 / 50000 h photobio. safety RG 0 - no Risk initial MacAdam ≤ 3 SDCM MR 0.54 MDER 0.49 Optical Opal PstLM ≤ 1.0 SVM ≤ 0.4 2 2 Electrical DALI-2 31 W PC1 220-240V 130 lm/W 1 DALI Addr. ≤ 3 SDCM; CRI ≥ 80; min. 90% of luminous flux after 50000 operating hours; energy efficient LEDs with high CRI; flush ceiling light level; completely homogeneously illuminated, satin PMMA cover.

Recessed adjustable downlight luminaire body made of aluminium housing with white powder coated finish. Black finish and Honeycomb accessory available upon request.

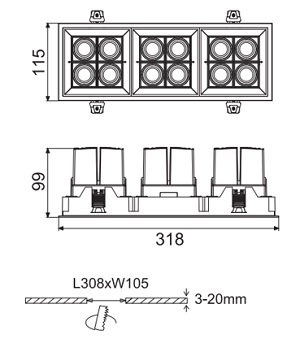

Recessed adjustable rectangular downlight, luminaire body made of aluminium housing with white powder coated finish. Black finish and Honeycomb accessory available upon request.
