SPARK

The recessed spot OIKO from the familiy OIKO consists of aluminum-die-cast. The article can be powder coated in 25 colours. Stated photometric values correspond to operation by 700 mA; a suitable ballast needs to be sourced separately and is not scope of delivery. Dimming (# 22345) depends on the used ballast and may vary. The spot with direct illumination corresponds to protection class SK3 at IP20. ZERO LIGHT LEAKAGE technology guarantees trouble-free use in acoustic ceilings.

Housing made of corrosion‑resistant die‑cast aluminum AlSi12, polyester powder coated by high‑quality and UV‑stabilized coating process, Colour: black ral 7021, all exterior parts are stainless steel, tempered safety glass, anti‑reflective coating from 1 side, dark screenprint, silicon gasket, closure with 4 stainless steel screws, for installation on poles Ø 60 ‑ 100 mm, tiltable base made of powder coated aluminum, 2 drilled holes Ø 9 mm, spacing 95 mm, 1 centre hole Ø 13.5 mm, tilt range: 90°, 360° adjustable, cable gland: M20, connecting terminal: 3 pole, precise PMMA optics, integral driver (AC/DC), CRI > 80, max 2 SDCM, service life L90/B10 > 50.000 h, Beam angle (fwhm): 25°, luminous flux: 2954 lm, wattage: 37 W, delivered lumens 80 lm/W, protection type IP65, protection class I, impact resistance IK08, windage area 0,022 m², dimensions (L×H×W): 152 × 120 × 152 mm, weight 2.4 kg. The modular luminaire design makes the replacement of components possible. The product meets the demands of the applicable EU guidelines and product safety regulations and bears the CE mark. Customized solutions and modifications are possible: Special ral, db or ncs colours as polyester powder coat, luminaires in 2700 K and other colour temperatures and versions for high ambient temperature.

Outdoor bollard made of die-cast aluminium housing extruded aluminium profile. Column pre-treated before powder coating ensuring high corrosion resistance. Single cable entry. One IP68 connector supplied with 0.2 m of 3x1.0 sqmm outdoor cable. Stainless steel fasteners in grade 304 with zinc flake coating (ZFC). Durable silicone rubber gasket.Frosted glass diffuser. Integral control gear. IP66.

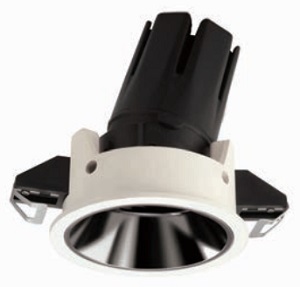

Round recessed luminaire with contact frame. Adjustable version with max 30° tilting movement. The main adjustable die-cast aluminium body includes a radiant surface that guarantees optimal heat dissipation. Metallised, thermoplastic, high definition reflector - wide flood optic (40°). Structure featuring a die-cast aluminium external contact frame with a white finish only. Steel technical rotation parts. The ring inside the adjustable body is made of thermoplastic.
