SPARK

LINEAR DOWNLIGHT

INDOOR LIGHTING

SPK1603-15W-36D

Recessed linear downlight, luminaire body made of aluminium housing with white powder coated trim finish. Reflector available Silver, Black Chrome and White finish. Black finish and honeycomb accessory available upon request.

Specification

Power

15W

Color Temperature

3000K

Light Source Type

LED

Lumen Output

871LM

Finishing

WHITE

IP Rating

IP20

Color Rendering

CRI 90

Driver

ON/OFF DRIVER

ILIGHT

CONTROL SYSTEM

This 12 channel feed through relay unit provides outstanding features and performance in a truly competitive and compact package. Each channel is rated for up to 32 amps and is designed to sit on load lines to switch heavy loads of all types. With iLight network, DMX and DALI connectivity, it has the capability of being linked with a virtually limitless number of other products to build up to any size of system. This product is designed for projects where high power switching is required including metal halide and high pressure sodium lamps as well as non-lighting loads of any voltage up to 230VAC.

LINEALIGHT

BOLLARD

OUTDOOR LIGHTING

Single emission bollard & pole for outdoor application. The warm white LED light source with a park light distribution is composed of 36 powerled LEDs with CCT of 3000 K and a CRI 80; the source luminous flux is 9925 lm, with a 138.8 lm/W nominal luminous efficacy. The device body is made of die-cast aluminium en ab - 46100 and features a grey finish, processed by means of powder coating; the diffuser is made of extra clear glass with a silk-screening treatment. The ingress protection degree is IP66. The total absorbed power is 75 W. The power supply cable is included and features a 1 m length. The device features protection class II and can be pole-mounted.

IGUZZINI

RECESSED LINEAR LIGHT

OUTDOOR LIGHTING

FLOS

RECESSED DOWNLIGHT

INDOOR LIGHTING

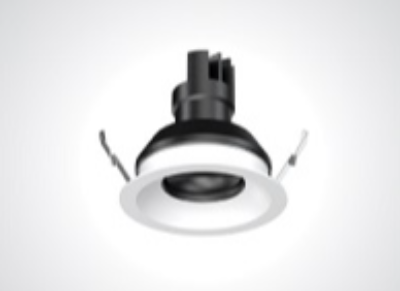

LED lighting module, with low glare, to be inserted in the recessed frames not included, installation through a bayonet system with interchangeable spots. Available in one-light versions and groups of two and four lights. Driver not included, the driver has to be directly connected to the embedding frames.
