SPARK

SURFACE TRACKLIGHT

INDOOR LIGHTING

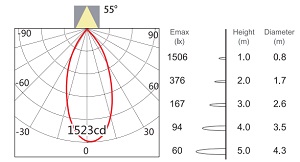

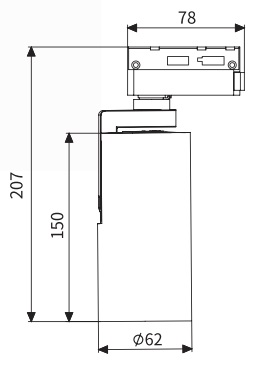

SPK9111-20W-55D

Track Adjustable Spotlight luminaire body made of aluminium housing with white powder coated finish. Black finish and honeycomb accessory available upon request.

Specification

Power

20W

Color Temperature

3000K

Light Source Type

LED

Lumen Output

1592LM

Finishing

WHITE

IP Rating

IP20

Color Rendering

CRI 90

Driver

ON/OFF DRIVER

FORMALIGHTING

LINEAR LIGHT

INDOOR LIGHTING

The Microline system is a custom design for a major retail lighting project. Surface-mounted modular linear LED system in extruded aluminum. Available in different lengths and configurations. LEDs in a wide variety of color temperatures, High Color Rendering with CRI up to 97 and R9 >90. Multiple diffuser options at your disposal can greatly enhance the overall aesthetic and functionality of a space. Dimming options are determined by the Power Supply, Remote Power Supply not included, to be ordered separately. Available in different lengths from min 185 mm to 1445 mm.Pitch or section length : 180mm.

LINEALIGHT

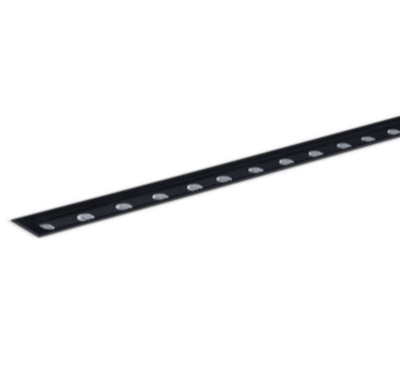

LED STRIP

OUTDOOR LIGHTING

Single emission led strip for outdoor application. The warm white LED light source with a medium wide flood light distribution is composed of 54 topled LEDs with CCT of 3000 K and a CRI 85; the source luminous flux is 2300 lm, with a 115.0 lm/W nominal luminous efficacy. The device body is made of technopolymer and features a black finish; the diffuser is made of pu. The ingress protection degree is IP67; the total weight is of 1.710 kg. The power supply driver is not provided and is to be order

LINEALIGHT

RECESSED DOWNLIGHT

INDOOR LIGHTING

Single emission downlights for indoor application. The warm white LED light source with a medium wide flood light distribution is composed of 1 powerled LEDs. The device body is made of die-cast aluminium en ab - 46100 and features a black finish, processed by means of powder coating; the diffuser is made of uv resistant polycarbonate. The ingress protection degree is IP44; the total weight is of 0.128 kg. The power supply driver is not provided and is to be ordered separately. The power supply cable is included and features a 0.170 m length. The device features protection class III and can be ceiling-mounted, with a 56 mm diameter hole (in plasterboard) with an outer casing, code 83063 (for concrete or masonry). Compliant with the EN 60598-1 standard and its specific provisions.

SPARK

SUSPENDED LINEAR LIGHT

INDOOR LIGHTING

35mm wide lamp body design creates a visually lighter and more refined appearance. By avoiding bulkiness, the light itself takes center stage, seamlessly integrating into modern minimalist interior styles. Flexibly combine with track spotlights continuous line. Suitable for commercial and retail application.

Dimension : L1494*35mm
