SPARK

DOVER is a series of surface-mounted downlights designedfor indoor spaces without false ceilings. There are square andround options, each available in three different sizes,with fixed and adjustable versions. This product is the round and adjustable model, available inthreesizes:80mm, 95mm, and 120mm in diameter. The LEDis deeplyhidden, providing an excellent anti-glare effect. If further glare reduction is needed

Direct light luminaire with monochrome LED lamps. It consists of a body and installation brackets to be ordered separately. The body is made of extruded aluminium and includes die-cast aluminium end caps with 50/60 Shore A silicone seals. It is subjected to a multistep, pre-treatment process, in which the main phases are degreasing, fluorozirconation (a protective surface film) and sealing (with a nano-structured silane layer). The following painting stage consists of a primer and a liquid acrylic paint, cured at 150°C, with a high level of weather and UV ray resistance. The top of the optical assembly is closed by a 3 mm thick transparent glass screen, fixed with silicone. Complete with multi-LED power plate in Warm White and power supply on/off (power supply included). The product is supplied with a nickel-plated brass PG11 double cable gland with H07RN 2x1, 5mm2 rubber outlet cables for pass-through wiring. Fitted with optics with a plastic (methacrylate) lens for Spot lighting. All external screws used are made of A2 stainless steel. The luminaire technical characteristics conform to EN 60598-1 standards and particular requirements.

Round Lightplane 3 is a highly efficacious LED luminaire with an integrated driver that delivers up to 100 lm/w. From its 76mm diameter channel, Lightplane Round 3 provides either direct, indirect or indirect/direct Illumination. When specified as an indirect/ direct luminaire, a dual circuit option allows the uplight and downlight components to be controlled separately. Individual or continuous row-mounting in suspended or wall configurations.

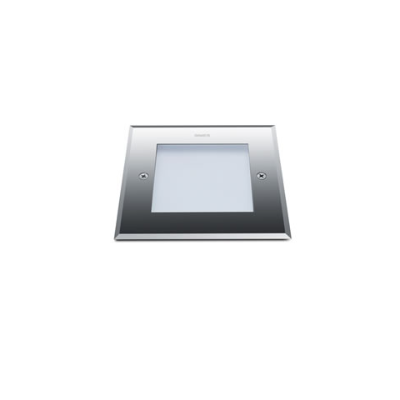

Body made of AISI 316L monoblock stainless steel. Absence of screws (the luminaire is fixed to the recessing box with OR rings). Recessing box in polypropylene. Mechanical resistance of diffusor IK 08 Maximum load capacity 500 Kg. This luminaire contains built-in LED modules. In case of damage or malfunction please contact the manufacturer to receive additional instructions on how to replace and relative spare parts to order. The LED modules cannot be handled in the luminaire by the end user. This product contains a light source of energy efficiency class: F. LED modules are engineered accordingly to the existing regulations of Lumen Maintenance (LM80) and Technical Memorandum (TM21), where uniformity and quality of the light is 70,000 hours referred to L80 B10 Ta 25 ° C (50,000 hours referable to L80 B10 Ta 40°C). Lifespan of the luminaire min. 50,000 hours at 40°C. Performance Ambient temperature Tq 25°C. Operating ambient temperature range is from -20°C to +50°C. Storage temperature range from -20°C to +60°C.
