SPARK

LED - LED array - 13W - 1014lm - 3000K - CRI> 90 - Beam° 45. Adjustable downlight

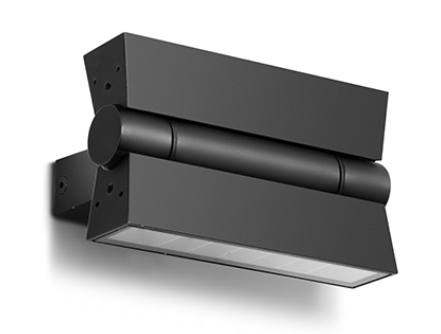

Recessed wall luminaire with light directed downwards, for flush or surface mounting installation. Luminaire for the uniform and glare-free illumination of ground surfaces. Luminaire made of aluminium alloy, aluminium and stainless steel. IP65,IK10. DIMENSION5: (W)250x(H)250x(D)105mm.

Ceiling mount downlights come with warm white LED light source with a medium flood light distribution composed of 1 array leds. Luminaire body is made of die-cast aluminium EN BA - 46100 and features a black finish, processed by means of open pore anodizing + powder coating; the diffuser is made of extra clear tempered glass. IP65, IK08

Housing made of corrosion‑resistant die‑cast aluminum AlSi12, polyester powder coated by high‑quality and UV‑stabilized coating process, Colour: black ral 7021, all exterior parts are stainless steel, tempered safety glass, anti‑reflective coating from 1 side, silicon gasket, closure with 2 stainless steel screws, mounting bracket: 1 elongated hole Ø 7 mm, spacing 18 mm, 1 centre hole Ø 8.5 mm, tilt range: 180°, cable gland: M16, connecting terminal: 3 pole, precise PMMA optics, integral driver (AC/DC), CRI > 70, max 2 SDCM, service life L90/B10 > 50.000 h, luminous flux: 679 lm, wattage: 9 W, delivered lumens 75 lm/W, protection type IP67, protection class I, impact resistance IK08, windage area 0,012 m², dimensions: Ø 123 mm, width 87 mm, weight 1.8 kg. The modular luminaire design makes the replacement of components possible. The product meets the demands of the applicable EU guidelines and product safety regulations and bears the CE and ENEC marks. Customized solutions and modifications are possible: Special ral, db or ncs colours as polyester powder coat, luminaires in 2700 K and other colour temperatures and versions for high ambient temperature.
