LINEALIGHT

SURFACE TRACKLIGHT

INDOOR LIGHTING

82228W15

Single emission projectors for indoor application. The warm white LED light source with a spot light distribution is composed of 1 arrayled LEDs. The device body is made of die-cast aluminium en ab - 46100 and features a embossed black ral 9005 finish, processed by means of powder coating. The ingress protection degree is IP20; the total weight is of 0.390 kg. The device features protection class II and can be ceiling-mounted. Compliant with the EN 60598-1 standard and its specific provisions.

Specification

Power

15.5W

Color Temperature

3000K

Light Source Type

LED

Lumen Output

977LM

Finishing

BLACK

IP Rating

IP20

Color Rendering

CRI 92

Driver

ON/OFF DRIVER

BEGA

WALL LIGHT

OUTDOOR LIGHTING

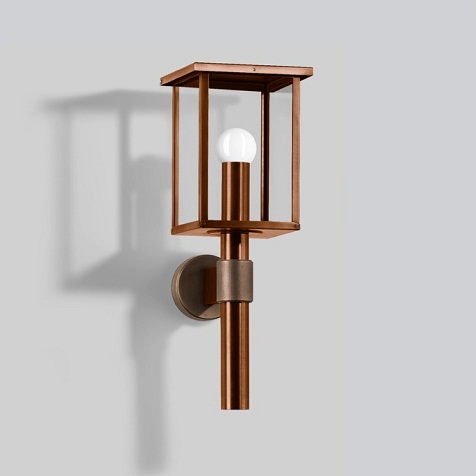

Luminaire made of copper and bronze alloy Crystal glazing. Wall mounting with a mounting plate made of stainless steel, Steel grade number 1.4301. Mounting plate with 3 fixing holes ø 5.5 mm. Angle 120° · Pitch circle ø 85 mm, 2 cable entries for through-wiring of mains supply cable ø 7-10,5 mm, max. 3 G 1.5@ Plug connection. Connecting terminal 2.5@ Earth conductor connection. LED power supply unit 220-240 V x 0/50-60 Hz. DC 176-264 V. Safety class I, Protection class IP 44, Protected against granular foreign bodies, > 1 mm and splash water, r – Safety mark, c – Conformity mark.

SPARK

ADJUSTABLE DOWNLIGHT

INDOOR LIGHTING

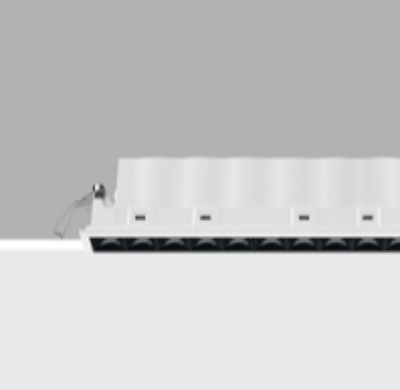

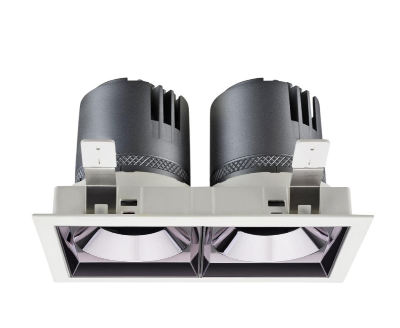

Recessed adjustable type downlight, aluminium housing, different types of beam angle.

LINEALIGHT

WALL LIGHT

OUTDOOR LIGHTING

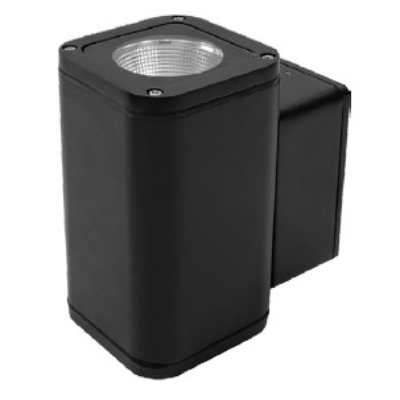

Single emission wall lights for outdoor application. The warm white LED light source with a extra wide flood light distribution is composed of 1 arrayled LEDs. The device body is made of die-cast aluminium en ab - 46100 and features a embossed white ral 9003 finish, processed by means of open pore anodizing + powder coating; the diffuser is made of extra clear glass - tempered with a silk-screening treatment. The ingress protection degree is IP65; the total weight is of 1.93 kg. The device features protection class I and can be wall lights-mounted. Compliant with the EN 60598-1 standard and its specific provisions.
