BEGA

FOOT LIGHT

OUTDOOR LIGHTING

24574K3

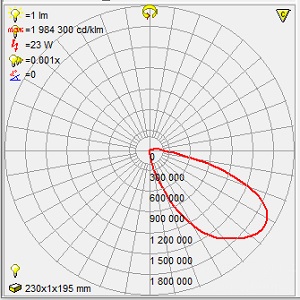

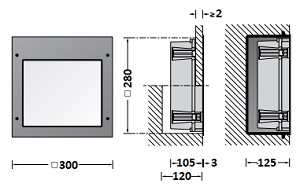

Recessed wall luminaire with asymmetrical flat beam light distribution, for flush or surface mounting installation. For the wide beam and uniform illumination of surfaces and paths.Luminaire made of aluminium alloy, aluminium and stainless steel. Luminaire made of aluminium alloy, aluminium and stainless steel. IP65,IK07. DIMENSION: (W)300x(H)300x(D)105mm.

Specification

Power

22.5W

Color Temperature

3000K

Light Source Type

LED

Lumen Output

2499LM

Finishing

GRAPHITE

IP Rating

IP65

Color Rendering

CRI>80

Driver

DALI DRIVER

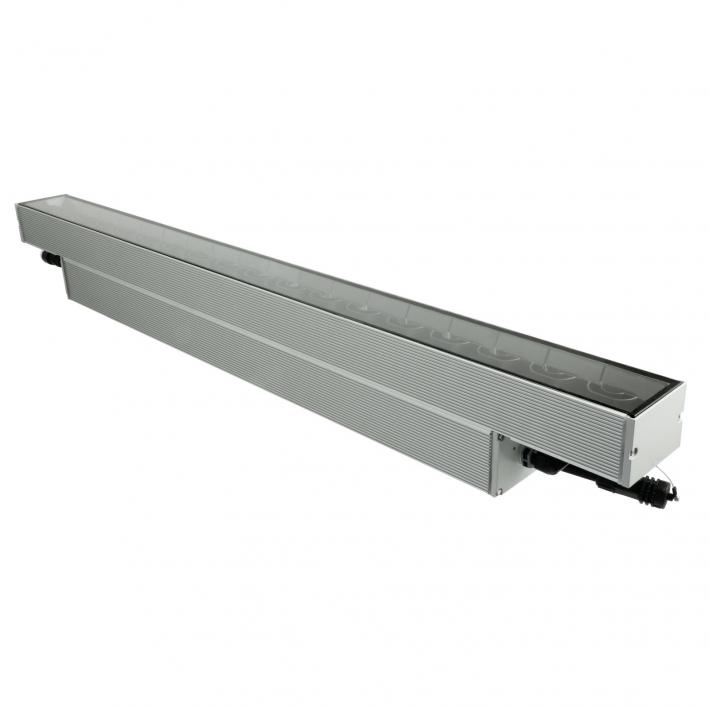

IGUZZINI

LINEAR GRAZER

OUTDOOR LIGHTING

Direct light luminaire, designed to use monochrome LED lamps, DALI 48Vdc dimmable with searching and addressing function. Ceiling-, wall- or surface-mounted. Consists of a body and supports for installation, to be ordered separately. The body is made of extruded aluminium and includes die-cast aluminium end caps with 50/60 Shore A silicone seals. It is subjected to a multi-step, pretreatment process, in which the main phases are degreasing, fluorozirconation (a protective surface film) and sealing (with a nanostructured silane layer). The following painting stage consists of a primer and a liquid acrylic paint, cured at 150°C, with a high level of weather and UV ray resistance. The top of the optical assembly is closed by a 3 mm thick transparent glass screen, fixed with silicone.

SIMES

INGROUND UPLIGHT

OUTDOOR LIGHTING

Body made of AISI 316L monoblock stainless steel. Absence of screws (the luminaire is fixed to the recessing box with OR rings). Recessing box in polypropylene. Mechanical resistance of diffusor IK 08 Maximum load capacity 500 Kg. This luminaire contains built-in LED modules. In case of damage or malfunction please contact the manufacturer to receive additional instructions on how to replace and relative spare parts to order. The LED modules cannot be handled in the luminaire by the end user. This product contains a light source of energy efficiency class: F. LED modules are engineered accordingly to the existing regulations of Lumen Maintenance (LM80) and Technical Memorandum (TM21), where uniformity and quality of the light is 70,000 hours referred to L80 B10 Ta 25 ° C (50,000 hours referable to L80 B10 Ta 40°C). Lifespan of the luminaire min. 50,000 hours at 40°C. Performance Ambient temperature Tq 25°C. Operating ambient temperature range is from -20°C to +50°C. Storage temperature range from -20°C to +60°C.

BEGA

WALL LIGHT

OUTDOOR LIGHTING

Wall luminaire with single-sided light output for illumination and design tasks in architecture. The luminaire can be installed with the light distribution opening upwards or downwards. Luminaire made of aluminium alloy, aluminium and stainless steel. IP65,IK06.

IGUZZINI

LINEAR DOWNLIGHT

INDOOR LIGHTING

Linear miniaturised recessed luminaire with 5 optical elements for LED lamps - fixed optic. Despite the ultracompact size of the product, the patented technology of the optic system guarantees an efficient flow and a high level of controlled glare visual comfort. Main body with die-cast zamak radiant surface, minimal (frameless) version for mounting flush with the ceiling. Metallised, thermoplastic, high definition Opti Beam reflectors, integrated in a set-back position in the anti-glare screen.
