SPARK

SUSPENDED DOWNLIGHT

INDOOR LIGHTING

SPK5141P-12W-15D

Suspended mount downlight luminaire body made of aluminium housing with white powder coated finish. Come with 1m hanging rod. Black finish and honeycomb accessory available upon request.

Specification

Power

12W

Color Temperature

3000K

Light Source Type

LED

Lumen Output

831LM

Finishing

WHITE

IP Rating

IP20

Color Rendering

CRI 90

Driver

ON/OFF DRIVER

XAL

LINEAR DOWNLIGHT

INDOOR LIGHTING

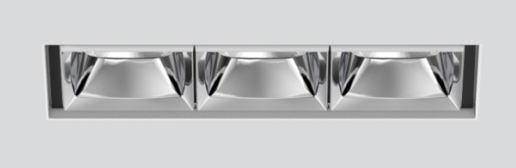

Rectangular recessed multi-downlight made of die-cast aluminium; installation without tools in mounting set due to patented ball catch system; rectangular installation housing; for trimless installation in plasterboard ceilings; suitable for ceiling thickness of 12.5/15/20/25 mm; equipped with three spot round light elements; symmetrical light distribution with precise radiation characteristic, beam angle 15°; high quality reflector with micro-faceted, aluminum-vaporised surface; chrome reflector; UGR ≤ 10; VDU compatible workplace luminaire according to DIN EN 12464-1; luminance above 65° ≤ 1500 cd/m²; passive cooling of the LEDs through improved heat sink geometry; light colour 3000 K; binning initial MacAdam ≤ 3 SDCM; CRI ≥ 90; min. 90% of luminous flux after 50000 operating hours; energy-efficient high power LEDs with very good colour rendering; degree of protection IP20; PC2; incl. converter, non dimmable; through wiring connection box, 3-pole or 5-pole, available as an accessory; accessories are listed separately; light source not replaceable; control gear replaceable by an authorized professional; clank-free

LIGMAN

INGROUND FOOT LIGHT

OUTDOOR LIGHTING

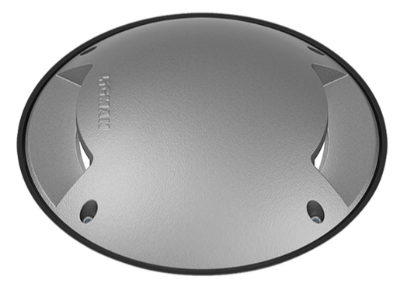

Die-cast aluminium housing and frame. Pre-treated before powder coating ensuring high corrosion resistance. Single cable entry, through wiring upon request. Stainless steel fasteners in grade 304 with zinc flake coating (ZFC. Durable silicone rubber gasket. High-efficiency glass lens. Integral control gear. Recessing box in high-density polyethylene is included. To ensure efficient drainage, gravel must be used to a depth of 450 mm and width of 300 mm beneath the housing and should also be placed around luminaire. Suitable for drive-over with a maximum load of 4,000 kg for MK-60249, MK-60259, 2,000 kg for MK-60269, 1,000 kg for MK-60729. Vehicles with pneumatic tires can drive over the luminaire but the speed must not exceed 10 km/h. Load is transferred by the housing to the foundation

SPARK

UP/DOWN WALL LIGHT

OUTDOOR LIGHTING

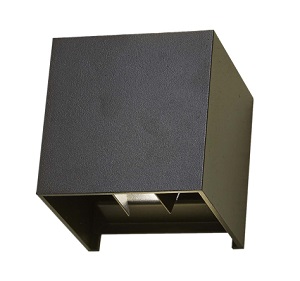

Outdoor Surface mount up/down wall light made of die-cast aluminium housing and in powder coated black finish. Silicon rubber gasket and external driver. Suitable for backyard, balcony, garden and outdoor wall application.
