SPARK

SUSPENDED DOWNLIGHT

INDOOR LIGHTING

SPK5201P-15W-36D

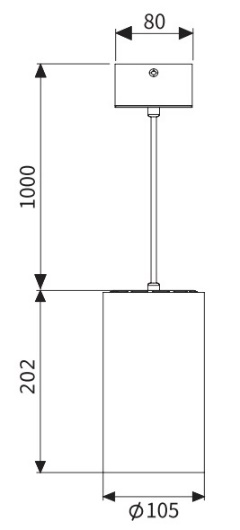

Suspended mount downlight, luminaire body made of aluminium housing with white powder coated finish. Come with 1m hanging rod. Reflector finish available White, Silver and Black Chrome. Black finish and honeycomb accessory available upon request.

Specification

Power

15W

Color Temperature

3000K

Light Source Type

LED

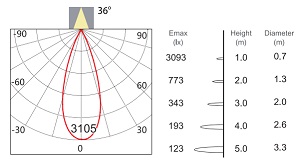

Lumen Output

1243LM

Finishing

WHITE

IP Rating

IP20

Color Rendering

CRI 90

Driver

ON/OFF DRIVER

SIMES

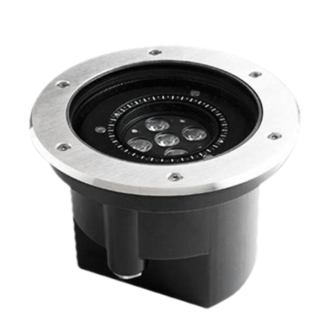

INGROUND UPLIGHT

OUTDOOR LIGHTING

Die-cast EN AB-44100 aluminium housing (copper free) with high corrosion resistance. Marine grade stainless steel AISI 316L 3 mm thick for RING or aluminium front trim for FLAT. Toughened glass diffuser 12mm thick for MICRORING, 15mm thick for MINIRING, 19mm thick for RING/MEGARING, 10mm thick for MICROFLAT, 12mm thick for MINIFLAT, 15mm thick for FLAT/MEGAFLAT. Stainless steel screws. Luminaire hard wired with single neoprene cable with cable gland. Fast connector IP68 included. Recessing box in polypropylene. Silicone gaskets.

FORMALIGHTING

SURFACE MOUNTED DOWNLIGHT

INDOOR LIGHTING

Ceiling and wall mounted spotlight with light body and driver canopy in cast aluminium. Inclusive of reflector in metalized PC. Light body is designed for passive cooling. Available in 3 different sizes. Tiltable vertically 0-90° and rotatable horizontally 360°.

LINEALIGHT

RECESSED DOWNLIGHT

INDOOR LIGHTING

Single emission downlights for indoor application. The warm white LED light source with a medium flood light distribution is composed of 3 powerled LEDs. The device body is made of plaster and features a white finish; the diffuser is made of ABS. The ingress protection degree is IP20; the total weight is of 0.500 kg. The power supply driver is not provided and is to be ordered separately. The power supply cable is included and features a 0.170 m length. The device features protection class III and can be ceiling-mounted, with a 160 x 90 mm hole (in plasterboard). Compliant with the EN 60598-1 standard and its specific provisions.
