LINEALIGHT

SURFACE TRACKLIGHT
INDOOR LIGHTING
82612W30
Single emission projectors for indoor application. The warm white LED light source with a flood light distribution is composed of 1 arrayled LEDs. The device body is made of die-cast aluminium en ab - 46100 and features a embossed black ral 9005 finish, processed by means of powder coating. The ingress protection degree is IP20; the total weight is of 0.390 kg. The device features protection class II and can be ceiling-mounted. Compliant with the EN 60598-1 standard and its specific provisions.

Specification

Power
15.5W
Color Temperature
3000K
Light Source Type
LED
Lumen Output
937LM
Finishing
BLACK
IP Rating
IP20
Color Rendering
CRI 98
Driver
ON/OFF DRIVER

See more

ZICO LIGHTING
LED BULB
INDOOR LIGHTING


LUMASCAPE
UNDERWATER LIGHT
OUTDOOR LIGHTING


MEYER
FLOODLIGHT
OUTDOOR LIGHTING

Housing made of corrosion‑resistant die‑cast aluminum AlSi12, polyester powder coated by high‑quality and UV‑stabilized coating process, Colour: black ral 7021, all exterior parts are stainless steel, tempered safety glass, anti‑reflective coating from 1 side, dark screenprint, silicon gasket, closure with 4 stainless steel screws, mounting bracket: 1 elongated hole Ø 7 mm, spacing 18 mm, 1 centre hole Ø 8.5 mm, tilt range: 180°, cable gland: M20, connecting terminal: 3 pole, precise PMMA optics, integral driver (AC/DC), CRI > 80, max 2 SDCM, service life L90/B10 > 50.000 h, Beam angle (fwhm): 25°, luminous flux: 549 lm, wattage: 7 W, delivered lumens 78 lm/W, protection type IP65, protection class I, impact resistance IK08, windage area 0,008 m², dimensions (L×H×W): 85 × 86 × 85 mm, weight 0.9 kg. The modular luminaire design makes the replacement of components possible. The product meets the demands of the applicable EU guidelines and product safety regulations and bears the CE mark. Customized solutions and modifications are possible: Special ral, db or ncs colours as polyester powder coat, luminaires in 2700 K and other colour temperatures and versions for high ambient temperature.

LUCI
LED LIGHT BAR
INDOOR LIGHTING

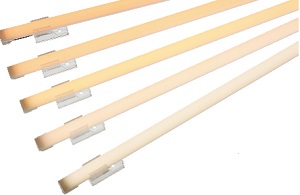

Narrow LED pitch suitable for limited space installation (10mm pitch, 16mm pitch). Small section W10mm * H4mm. 2 types of wattage (3.9W, 2.5W per meter). Customized length available up to 5m per roll.
