LINEALIGHT

SURFACE TRACKLIGHT
INDOOR LIGHTING
81755W30

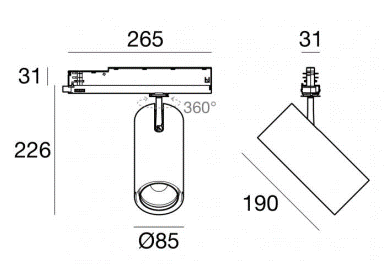

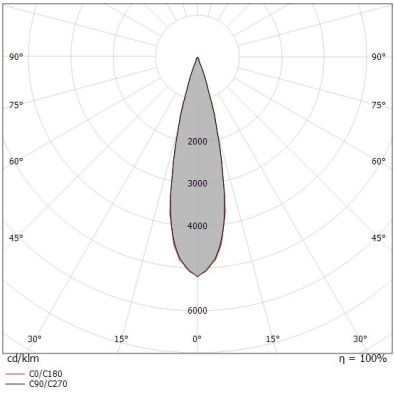

Single emission projectors for indoor application. The warm white LED light source with a flood light distribution is composed of 1 arrayled LEDs. The device body is made of die-cast aluminium en ab - 46100 and features a embossed black ral 9005 finish, processed by means of powder coating. The ingress protection degree is IP20; the total weight is of 0.920 kg. The device features protection class II and can be ceiling-mounted. Compliant with the EN 60598-1 standard and its specific provisions.

Specification

Power
39W
Color Temperature
3000K
Light Source Type
LED
Lumen Output
2623LM
Finishing
BLACK
IP Rating
IP20
Color Rendering
CRI 98
Driver
ON/OFF DRIVER

See more

LED LINEAR
SURFACE LINEAR LIGHT
OUTDOOR LIGHTING

Modular luminaire with 8 different optics available and side cabling and a large panel of mounting options. Translucent end caps and special cable exit solutions make it easy to create infinite lines of light. Housing and mounting profile are also available in black for directly visible applications. Minimalistic form factor and several cable exit and connector options enable seamless integration.

TRAXON
WALLWASHER
OUTDOOR LIGHTING


LINEALIGHT
RECESSED DOWNLIGHT
INDOOR LIGHTING

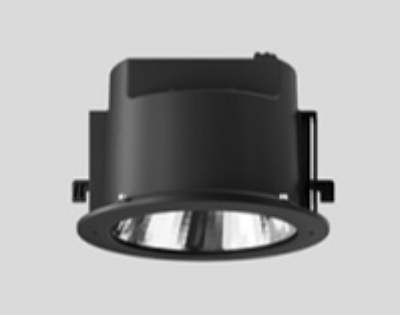

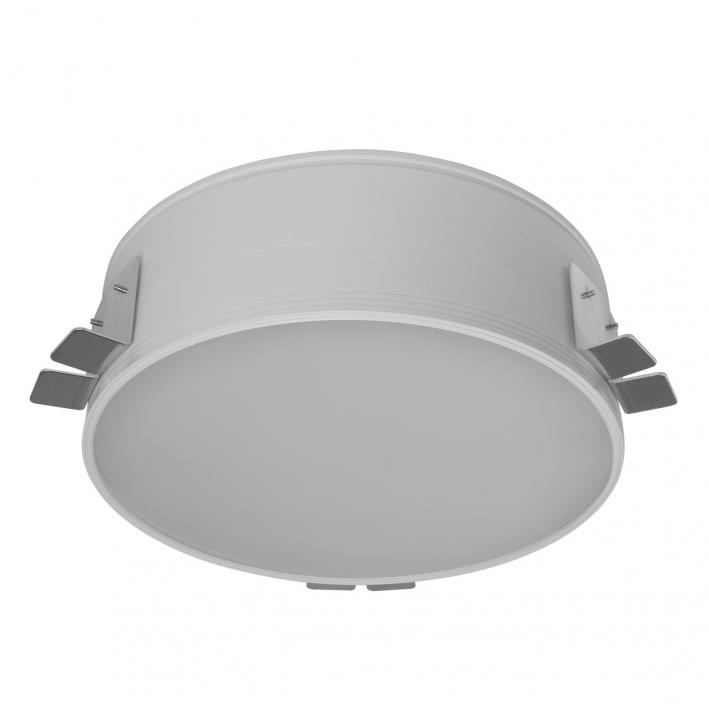

Single emission downlights for indoor application. The warm white LED light source with a medium wide flood light distribution is composed of 1 arrayled LEDs. The device body is made of PC, processed by means of coating. The ingress protection degree is IP20; the total weight is of 1.8 kg. The power supply driver is not provided and is to be ordered separately. The power supply cable is included and features a 0.3 m length. The device features protection class III and can be ceiling-mounted, with a 210 mm diameter hole (in plasterboard). Compliant with the EN 60598-1 standard and its specific provisions.
SIMES
INGROUND UPLIGHT
OUTDOOR LIGHTING

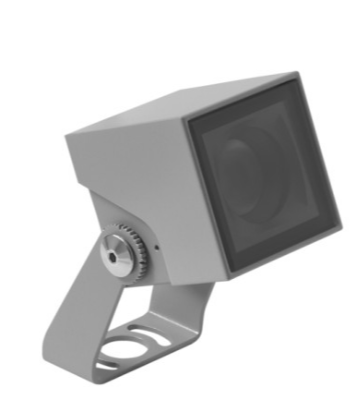

Die cast EN AB-44100 aluminium housing (copper free) with high corrosion resistance. Marine grade stainless steel AISI 316L front trim 2 mm thick. Toughened glass diffuser 12mm thick for COMPACT 200, 12mm thick for COMPACT 275, 15mm thick for COMPACT 360. Luminaire hard wired with single neoprene cable with cable gland. Stainless steel screws. Recessing box in polypropylene arranged for cable entries in all 4 sides. Silicone gaskets.
