LINEALIGHT

SURFACE TRACKLIGHT

INDOOR LIGHTING

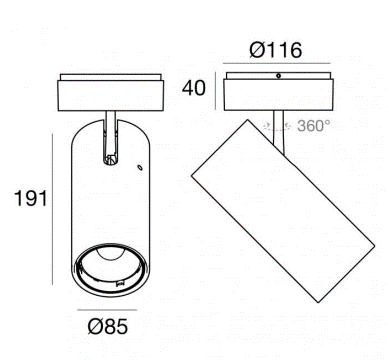

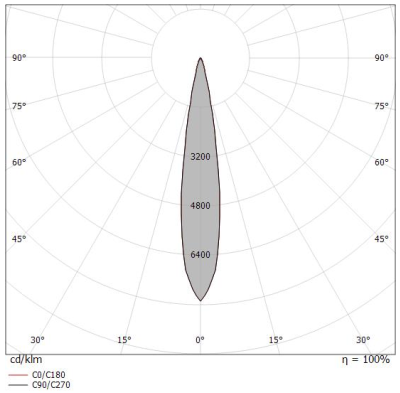

82364N15

Single emission projectors for indoor application. The natural white LED light source with a spot light distribution is composed of 1 arrayled LEDs. The device body is made of die-cast aluminium en ab - 46100 and features a embossed black ral 9005 finish, processed by means of powder coating. The ingress protection degree is IP20; the total weight is of 0.920 kg. The device features protection class I and can be ceiling-mounted. Compliant with the EN 60598-1 standard and its specific provisions.

Specification

Power

39W

Color Temperature

3000K

Light Source Type

LED

Lumen Output

3077LM

Finishing

BLACK

IP Rating

IP20

Color Rendering

CRI 92

Driver

ON/OFF DRIVER

ILIGHT

CONTROL SYSTEM

INDOOR LIGHTING

Designed and tested to meet the unique demands of mains dimmable LED the SCMA0401 is the ideal solution for your lighting control needs. With our Patent Pending* “iLight Adapt” trailing edge technology the SCMA0401 will adapt to the particular characteristics of each connected LED load to deliver the best possible dimming performance and compatibility. Scalable dimming curves optimise the effective dimmable range particularly enhancing control and sensitivity at low lighting levels. In addition to its “iLight Adapt” trailing edge mode the SCMA0401 also offers leading edge and switched modes, selectable by channel, to extend the capabilities beyond just LED loads to other lighting types such as incandescent and halogen lamps for dimming or switching (Note: SCMA0401 is not for use with inductive loads). With iLight network connectivity the SCMA0401 may be linked with a virtually limitless number of other iLight products to build up any size system. Alternatively, it can provide phase cut dimming capabilities to a DALI system using its DALI input.

SPARK

SURFACE MOUNTED DOWNLIGHT

INDOOR LIGHTING

Surface mounted downlight luminaire body made of aluminium housing with white powder coated finish. Reflector finish available White, Silver and Black Chrome. Black finish and honeycomb accessory available upon request.

LINEALIGHT

WALLWASHER

OUTDOOR LIGHTING

Single emission lines for outdoor application. The warm white LED light source is composed of 27 powerled LEDs. The device body is made of aluminium 6060 and features a anodised aluminum finish, processed by means of 20 µm anodizing; the diffuser is made of extra clear glass - tempered with a silk-screening treatment. The ingress protection degree is IP67; the total weight is of 7 kg. The power supply cable is included and features a 0.2 m length. The device features protection class I and can be wall lights or floormounted with an outer casing, code 99760 (for concrete or masonry). Compliant with the EN 60598-1 standard and its specific provisions.
