SPARK

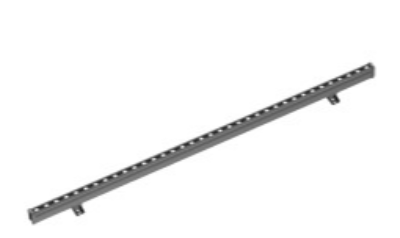

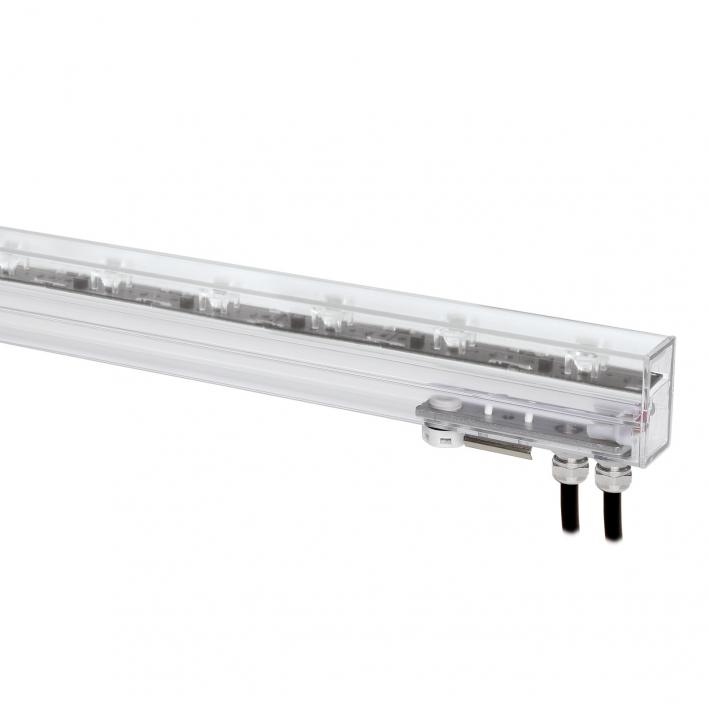

24 V, IP67 protected and IK10 certified, linear LED luminaire for indoor and outdoor in-ground installation. Suitable for installation into roads and parking lots according to EN 60598-2-13. To be walked on and traversed by vehicles with air filled tires (including trucks used for delivery). Polyurethane encapsulation offering a premium water proof sealing (values), UV resistance (no coloration or increase of absorption) chemical stability against urban gazes and protection against abrasion. Stainless Steel V4A housing delivered with male/female IP67 connectors. Available either with an opal top layer or transluscent with an internal 10° and 30° lenses for wall grazing. Light source assembled using state of the art automated Reel-to-Reel (R2R) production process supporting LED Linear™ Tj Away thin flexible circuit board technology.

LED Built-in with body - High Power LED - Power LED. 3-step MacAdam

Single emission downlights for indoor application. The warm white LED light source is composed of 1 powerled LEDs. The device body is made of die-cast aluminium en ab - 46100 and features a embossed black ral 9005 finish, processed by means of powder coating; the diffuser is made of uv resistant polycarbonate. The ingress protection degree is IP44; the total weight is of 0.078 kg. The power supply driver is not provided and is to be ordered separately. The power supply cable is included and features a 0.170 m length. The device features protection class III and can be ceiling-mounted, with a 46 mm diameter hole (in plasterboard). Compliant with the EN 60598-1 standard and its specific provisions.

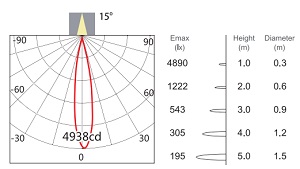

Single emission uplights for outdoor application. The super warm white LED light source with a spot light distribution is composed of 1 powerled LEDs with CCT of 2700 K and a CRI 80; the source luminous flux is 219 lm, with a 109.5 lm/W nominal luminous efficacy.

The device body is made of ot58 brass and features a chrome finish, processed by means of galvanic chromium plating. The ingress protection degree is IP67; the total weight is of 0.130 kg. The power supply driver is not provided and is to be ordered separately.

The total absorbed power is 2 W. The power supply cable is included and features a 1 m length.

The device features protection class III and can be floor-mounted with an outer casing, code 84918(for concrete or masonry).

Compliant with the EN 60598-1 standard and its specific provisions.
