SPARK

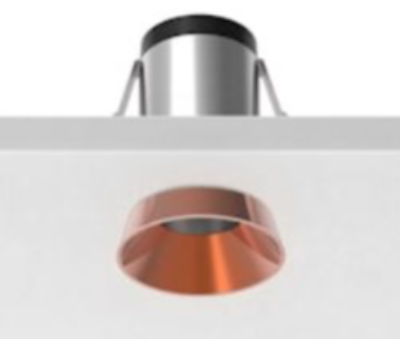

Compatible with 35 and 50 series LED modules. Colour temperature options 2700K,3000K, 4000K, 5000K, tuneWHITE, WarmDim. Colour rendering index 85 or 95. Up to 50,000 hours L80 lamp life with LM80 tested LED chip packages. Beam pattern options ClassicPRO 12, 20, 35, 60. Luminous flux 335lm to 1500lm depending on LED module. Supplied with non-dimmable or phase0-10VDALI dimmable LED driver, 76mm cutout, ATePS Automated Thermal Protection System, ComfyEYE, reduced flicker percentage, Interchangeable LED module system, Optional IP54 seal, colour and light, effect filters and honeycomb anti-glare louvre. For the latest specifications please refer to the website.

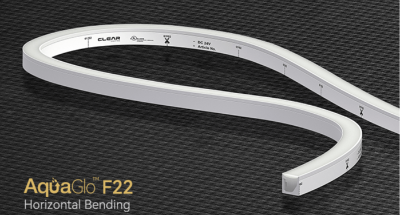

Single emission submerged or led strip for outdoor application. The super warm white LED light source with a diffused light distribution is composed of 112 topled LEDs. The luminaire body is made of technopolymer and features a white finish; the diffuser is made of pu. The ingress protection degree is IP68

timeless design · square design · Precision reflector for accentuation · Microfaceted, aluminum-coated reflector · highly reflective faceted reflector · aluminum coated for best reflection · passive cooling through optimized heat sink · powder-coated die cast body · Concrete installation housing available as accessory. · Snap springs for concrete and hollow walls · Installation depth only 100 mm · Ceiling thicknesses from 1-25 mm · RAL colors on request · 28 colors possible

Rectangular recessed multi-downlight made of die-cast aluminium; installation without tools in mounting set due to patented ball catch system; rectangular installation housing; with trim traffic white; suitable for ceiling thickness of 2-25 mm; equipped with four wide flood square light elements; symmetrical light distribution with precise radiation characteristic, beam angle 71°; high quality reflector with micro-faceted, aluminum-vaporised surface; black reflector; passive cooling of the LEDs through improved heat sink geometry; light colour 3000 K; binning initial MacAdam ≤ 3 SDCM; CRI ≥ 90; min. 90% of luminous flux after 50000 operating hours; energyefficient high power LEDs with very good colour rendering; degree of protection IP20; PC2; incl. converter, non dimmable; through wiring connection box, 3-pole or 5-pole, available as an accessory; accessories are listed separately; light source not replaceable; control gear replaceable by an authorized professional; clank-free;
