SPARK

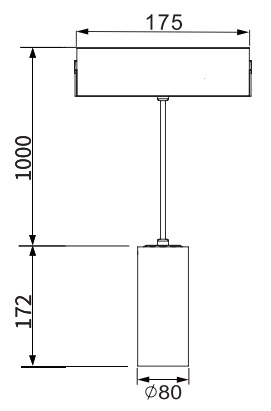

Suspended mount downlight luminaire body made of aluminium housing with white powder coated finish. Come with 1m hanging rod. Reflector finish available White, Silver and Black Chrome. Black finish and honeycomb accessory available upon request.

6 channels 10A/CH switch output, 6 channels 0-10V control signal. Switch relays and 0-10V channels can be controlled separately. 220V ± 10% 50Hz Single phase 0.1A. Phase-independent. Control input: 1 × RS485 network serial port input; 1 × AUX dry contact input. Internal control: Build in programmable logic controller. Network DC power: 90mA DC12V. Presets scenes: 96 (no loss of information due to power failure. DIN rail installation

Recessed luminaire that can be installed in walls, ceilings and floors. It is designed to use white monochrome LED lamps. The luminaire is fixed to the outer casing using special locking seals that hold it in place. The unit comes complete with LED circuit and a metallized plastic reflector. The product's wiring system features an A2 stainless steel cable gland. The cable is equipped with an anti-transpiration device (IP68) that consists of a silicone-coated joint located on the power cable. Two types of outer casing are available for installation and both can be ordered separately from the plastic optic assembly. The glass unit, optical assembly and outer casing together guarantee a maximum static load resistance. The maximum surface temperature of the glass is less than 40°. Luminaire protected against polarity inversion.

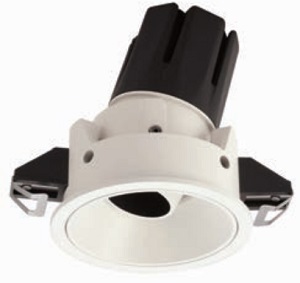

Recessed downlight for indoor applications; recessed (ceiling); Power consumption: max 6W; Power supply: max 500mA; Lumen output at source:

436 lm (3000K, 500mA); Delivered lumen output: 348 lm (3000K, 500mA, 24°); 3 power LEDs, 1/4 ANSI BIN, 50 000h L90 B10 (Ta 25°C); LED colour:

2700K; Optics: 12°; CRI Colour Rendering Index: 80; Body material: body in aluminium, trim in brass; Finishes: gold; RAL finish on request;

Thickness of installation surface: min 5 mm, max 25 mm; power supply unit not
