LINEALIGHT

RECESSED DOWNLIGHT
INDOOR LIGHTING
90643W15

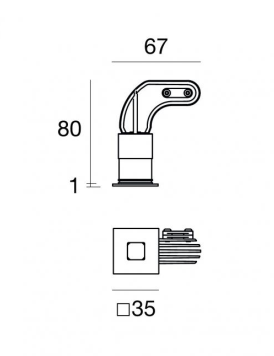

Single emission downlights for indoor application. The warm white LED light source with a spot light distribution is composed of 1 powerled LEDs. The device body is made of aluminium 6026 and features a embossed white ral 9005 finish, processed by means of powder coating; the diffuser is made of uv resistant polycarbonate. The ingress protection degree is IP44; the total weight is of 0.078 kg. The power supply driver is not provided and is to be ordered separately. The power supply cable is included and features a 0.170 m length. The device features protection class III and can be ceiling-mounted, with a 29 mm diameter hole (in plasterboard). Compliant with the EN 60598-1 standard and its specific provisions

Specification

Power
4W
Color Temperature
3000K
Light Source Type
LED

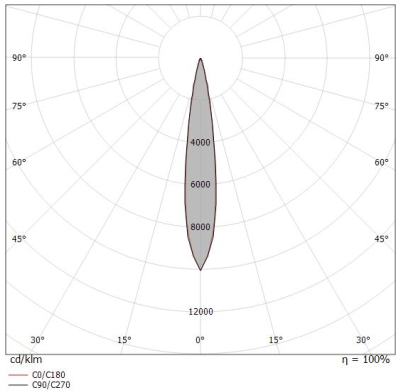

Lumen Output
137LM
Finishing
WHITE
IP Rating
IP44
Color Rendering
CRI 90
Driver
ON/OFF DRIVER

See more

UNILAMP
RECESSED DOWNLIGHT
OUTDOOR LIGHTING

Characterized by clean and clean-cut lines CORE is a family of square wall light, ceiling light, bollard and pole lights. CORE is available in two sizes and equipped with COB LED in three color temperatures and exceptional color consistency. The computer-aided-design of the parabolic reflector provides efficient light emission and distribution. The housing is dust and water protected through the extensive engineering design and testing. CORE is recommended to illuminate column, facades, walkways and vairous architectural design works. The pole lights give a great level of downward light with symmetric or asymmetric light distributions.

FLOS
SURFACE TRACKLIGHT
INDOOR LIGHTING
LED accent lighting module to be installed in the Zero Track system. Incorporated DC/DC electronic converter. Module regulated via Casambi driver, 1–10-V or DALI in broadcast mode. To individually control the lights, select integrated Casambi versions.
LIGHTFORMS
SUSPENDED PENDANT LIGHT
INDOOR LIGHTING
Lightplane 1S features a narrow, 25mm linear channel and provides direct illumination from a minimalist form. The fixture is available in suspended, wall and surface models. Driver is REMOTE.
PHOS
RECESSED DOWNLIGHT
INDOOR LIGHTING

The Eclipse Mini Trim Fixed is a recessed downlight, with a Ø86mm bezel and features a beautifully sculpted anti-glare baffle. Unique, elegant small aperture. 360° rotation. Easily interchangeable optics. Flawless finishes available on all components. Part of a wide family range of fully modular luminaires.
